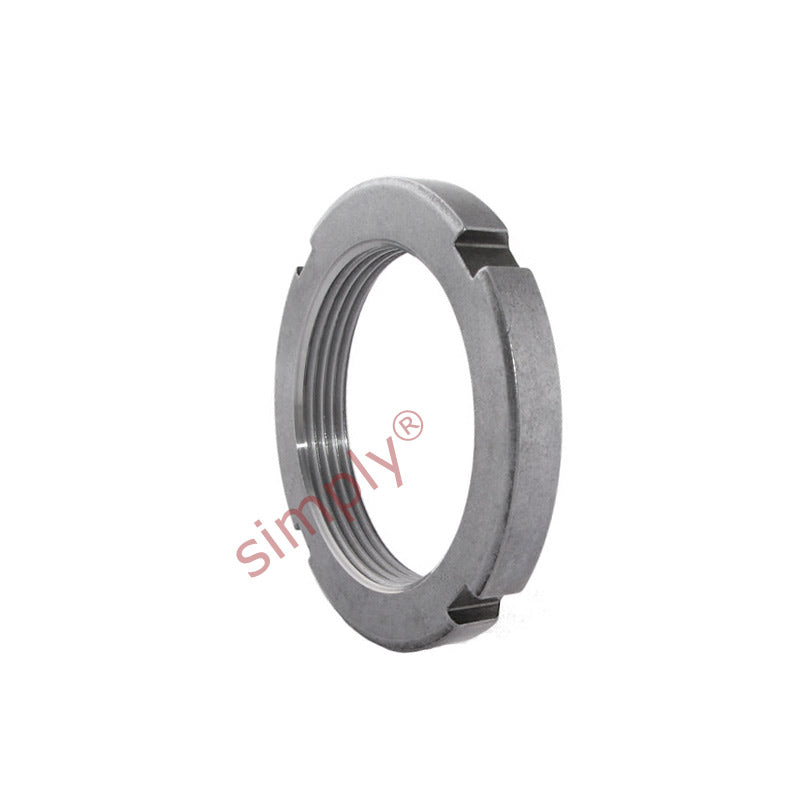

• Premier Budget N12 Imperial Lock Nut (Lock Washer Type) 2.36x3.161x0.541 inch
1 1

SKU: N12-EU

Premier Budget N12 Imperial Lock Nut (Lock Washer Type) 2.36x3.161x0.541 inch

Premier Budget N12 Imperial Lock Nut (Lock Washer Type) 2.36x3.161x0.541 inch
$13.30 ex VAT
$13.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $8.91
5+ $8.41
9+ $8.31
19+ $8.21
49+ $8.11
74+ $8.01
99+ $7.51
199+ $7.41
249+ $7.31
499+ $7.21
999+ $7.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Premier Budget - Good Quality
Inside Diameter:
59.94mm = 2.36 inch
Outside Diameter:
80.29mm = 3.161 inch
Width:
13.74mm = 0.541 inch
Technical
G 2.36 inch
Threads per inch 18
d<sub>1</sub> 2.844 inch
d<sub>3</sub> max 3.161 inch
B 0.541 inch
b 0.24 inch
h 0.135 inch
Static axial load carrying capacity 27427 lbf
Mass 0.2268 kg
Associated spanner <a href="advanced_search_result.php?search_in_description=1&keywords=HN12-13+lock+spanner">HN12-13 [Click Here]</a>
Associated locking device <a href="advanced_search_result.php?search_in_description=1&keywords=W12+lock+tab+washer">W12 [Click Here]
