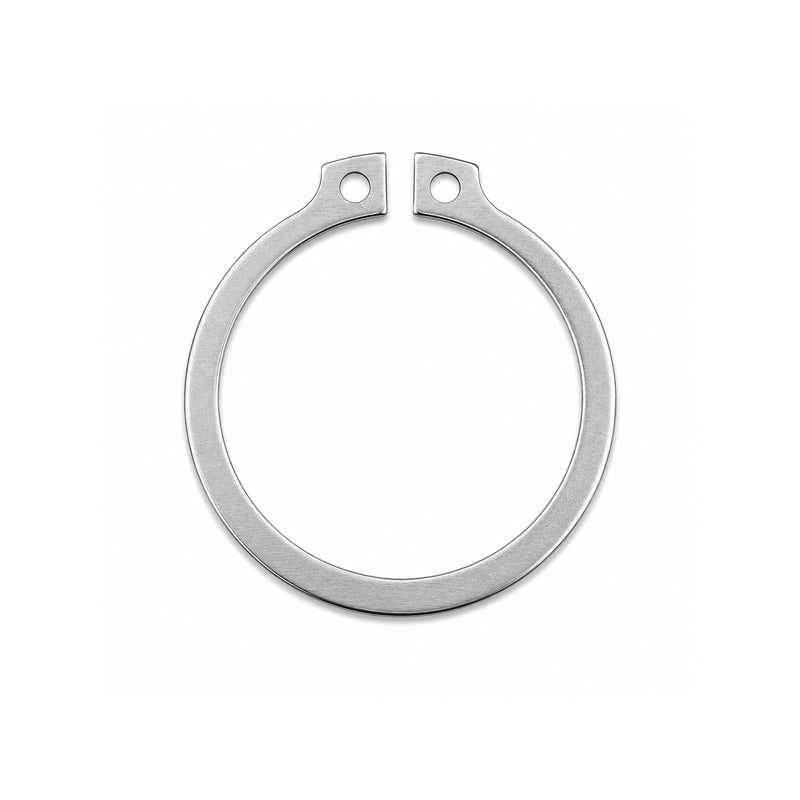

Stainless Steel External Circlip for 0.78 inch Shaft Diameter Un-Sprung Diameter 0.722 inch
Stainless Steel External Circlip for 0.78 inch Shaft Diameter Un-Sprung Diameter 0.722 inch
Equivalent to: N1400-078SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 18.34mm = 0.722 inch
- Material:
- Stainless Steel
- Shaft Size:
- 19.84mm = 0.781 (25/32) inch
- Thickness:
- 1.07mm = 0.042 inch
- Groove Diameter:
- 18.62mm = 0.733 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 0.781 inch |
| Ring Thickness (t) | 0.042 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 0.722 inch |
| Unstressed diameter tolerance (D) | +0.005 / -0.010 inch |
| Lug (L) | 0.14 inch |
| Beam (b) | 0.094 inch |
| h | 0.052 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.733 inch |
| Groove tolerance (G) | 0.003 inch |
| Minimum Groove Width (W) | 0.046 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.024 inch |
