SKU: N1400-315
External Circlip for 3.15 inch Shaft Diameter Un-Sprung Diameter 2.920 inch
External Circlip for 3.15 inch Shaft Diameter Un-Sprung Diameter 2.920 inch
Regular price
$4.44
ex VAT
Regular price
Sale price
$4.44
ex VAT
Equivalent to: N1400-315
In stock
Price Break
5+
$2.34
10+
$2.00
20+
$1.84
50+
$1.67
100+
$1.34
500+
$1.17
1000+
$1.00
Quantity
Couldn't load pickup availability
Description
Description
|

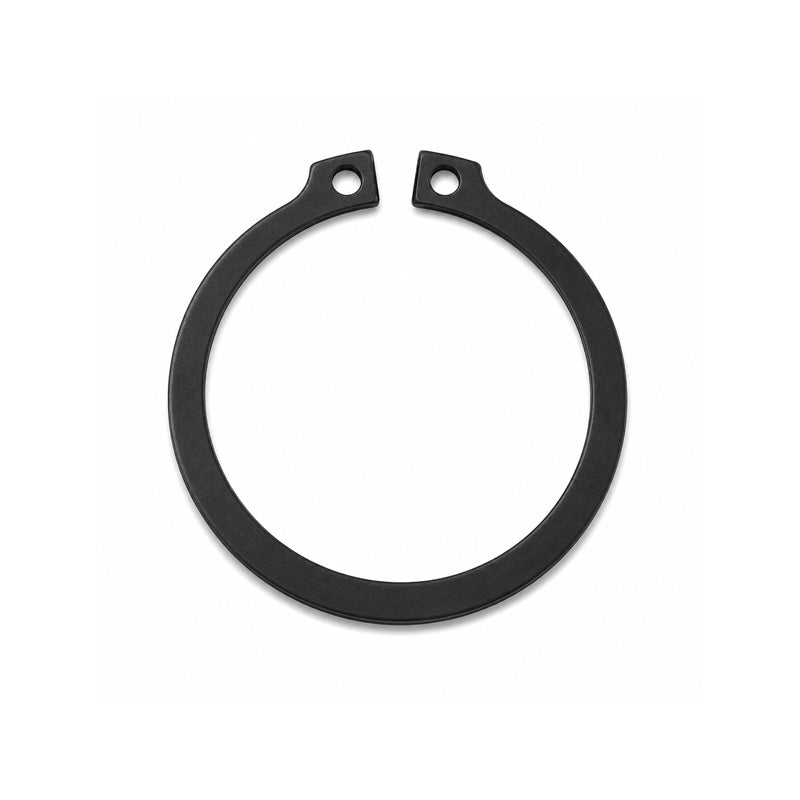

Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 74.17mm = 2.92 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 80.17mm = 3.156 (3-5/32) inch
- Thickness:
- 2.36mm = 0.093 inch
- Groove Diameter:
- 75.84mm = 2.986 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 3.156 inch |
| Ring Thickness (t) | 0.093 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 2.920 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.030 inch |
| Lug (L) | 0.284 inch |
| Beam (b) | 0.276 inch |
| h | 0.123 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 2.986 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.103 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.085 inch |
