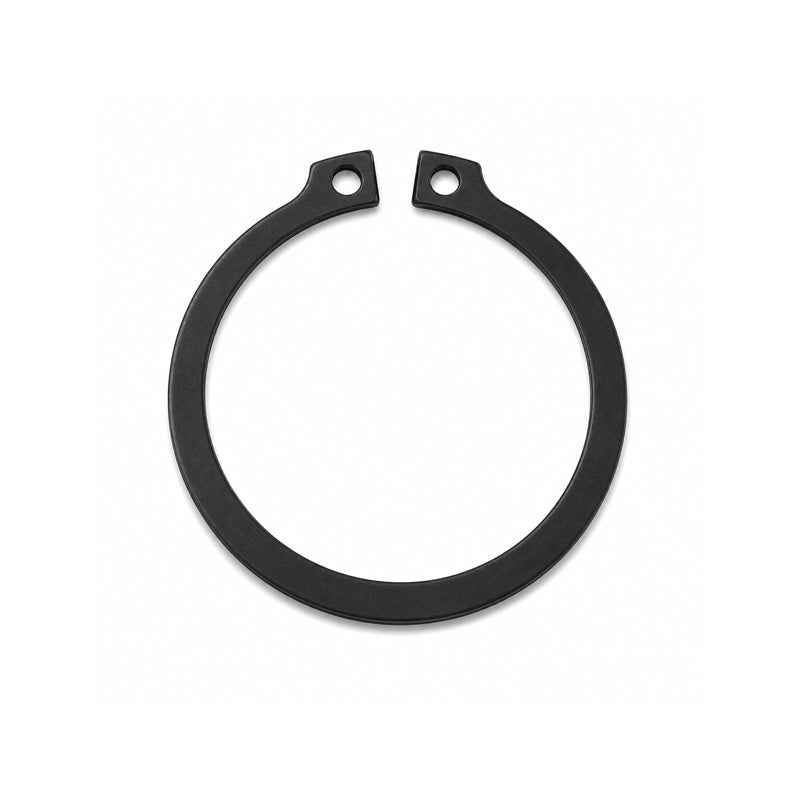

External Circlip for 5.5 inch Shaft Diameter Un-Sprung Diameter 5.162 inch
External Circlip for 5.5 inch Shaft Diameter Un-Sprung Diameter 5.162 inch
Equivalent to: N1400-550
Out of stock
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 131.11mm = 5.162 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 139.7mm = 5.5 (5-1/2) inch
- Thickness:
- 3.18mm = 0.125 (1/8) inch
- Groove Diameter:
- 133.73mm = 5.265 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 5.500 inch |
| Ring Thickness (t) | 0.125 inch |
| Thickness tolerance (t) | 0.004 inch |
| Unstressed diameter (D) | 5.162 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.040 inch |
| Lug (L) | 0.457 inch |
| Beam (b) | 0.39 inch |
| h | 0.151 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 5.265 inch |
| Groove tolerance (G) | 0.007 inch |
| Minimum Groove Width (W) | 0.139 inch |
| Groove Width Tolerance (W) | +0.006 / -0.000 inch |
| Groove depth (d) | 0.117 inch |
