SKU: N1800-012

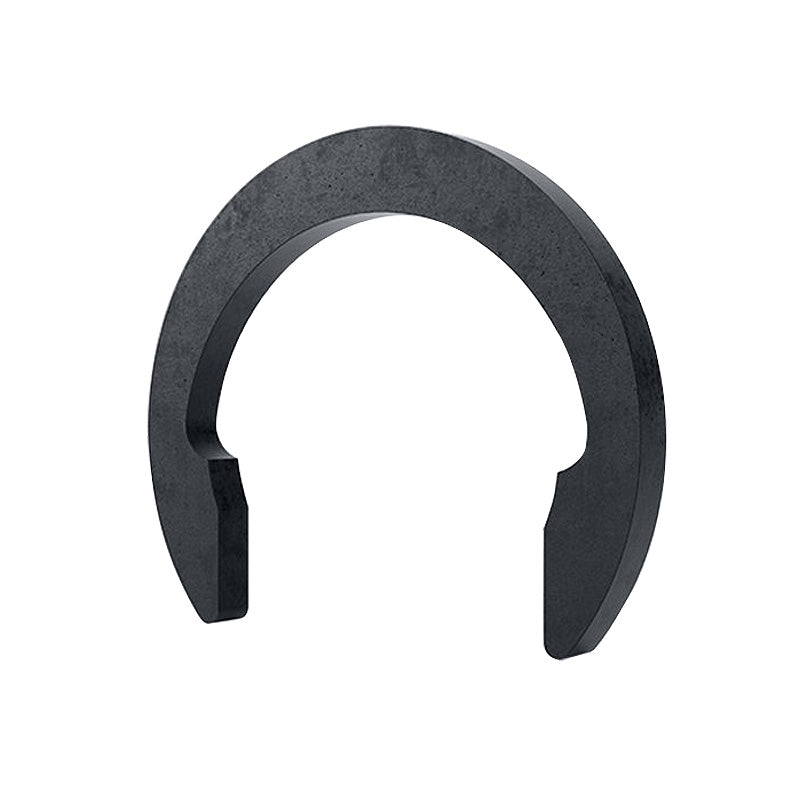

N1800-012 Imperial Crescent Ring for 1/8 inch Diameter Shafts
N1800-012 Imperial Crescent Ring for 1/8 inch Diameter Shafts
Regular price
$1.58
ex VAT
Regular price
Sale price
$1.58
ex VAT
Equivalent to: N1800-012
In stock
Price Break
5+
$0.83
10+
$0.71
20+
$0.65
50+
$0.60
100+
$0.48
500+
$0.42
1000+
$0.36
Quantity
Couldn't load pickup availability
Description
Description
Crescent Rings: These crescent rings are an alternative clip style, similar to standard style circlips.
The advantage of using these crescent rings is that they provide greater clearance around the outside diameter as they do not have lugs.
Benefits: Cost effective replacement, durable, removable.
- Brand / Quality:
- Simply Crescent Rings - Economy Quality
- Shaft Size:
- 3.18mm = 0.125 (1/8) inch
- Thickness:
- 0.38mm = 0.015 inch
Technical
Technical
| Shaft Size (S) | 0.125 inch = 1/8 inch |
|---|---|
| Shaft Tolerance | -0.003 to +0.000 inch |
| Thickness (t) | 0.015 inch |
| Thickness Tolerance | +.002 inch |
| Free Diameter (D) | 0.102 inch |
| Free Diameter Tolerance | +0.002 to -0.004 inch |
| Circlip in Groove | 0.18 inch |
