SKU: N1800-021

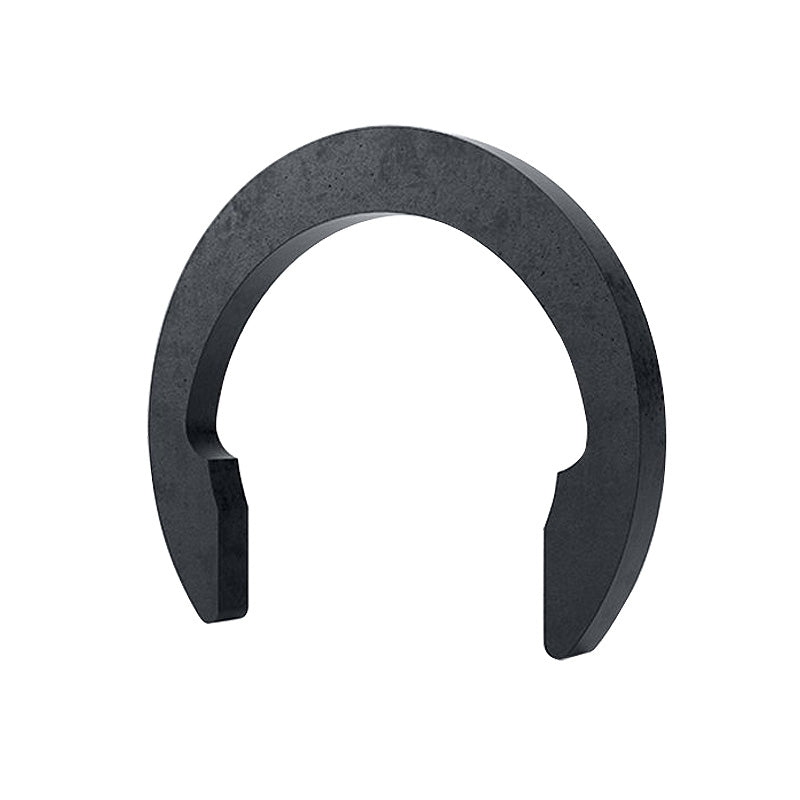

N1800-021 Imperial Crescent Ring for 7/32 inch Diameter Shafts
N1800-021 Imperial Crescent Ring for 7/32 inch Diameter Shafts
Regular price
$1.58
ex VAT
Regular price
Sale price
$1.58
ex VAT
Equivalent to: N1800-021
In stock
Price Break
5+
$0.83
10+
$0.71
20+
$0.65
50+
$0.60
100+
$0.48
500+
$0.42
1000+
$0.36
Quantity
Couldn't load pickup availability
Description
Description
Crescent Rings: These crescent rings are an alternative clip style, similar to standard style circlips.
The advantage of using these crescent rings is that they provide greater clearance around the outside diameter as they do not have lugs.
Benefits: Cost effective replacement, durable, removable.
- Brand / Quality:
- Simply Crescent Rings - Economy Quality
- Shaft Size:
- 5.56mm = 0.219 (7/32) inch
- Thickness:
- 0.64mm = 0.025 inch
Technical
Technical
| Shaft Size (S) | 0.2188 inch = 7/32 inch |
|---|---|
| Shaft Tolerance | -0.004 to +0.000 inch |
| Thickness (t) | 0.025 inch |
| Thickness Tolerance | +.002 inch |
| Free Diameter (D) | 0.187 inch |
| Free Diameter Tolerance | +0.003 to -0.005 inch |
| Circlip in Groove | 0.29 inch |
