SKU: N1800-050

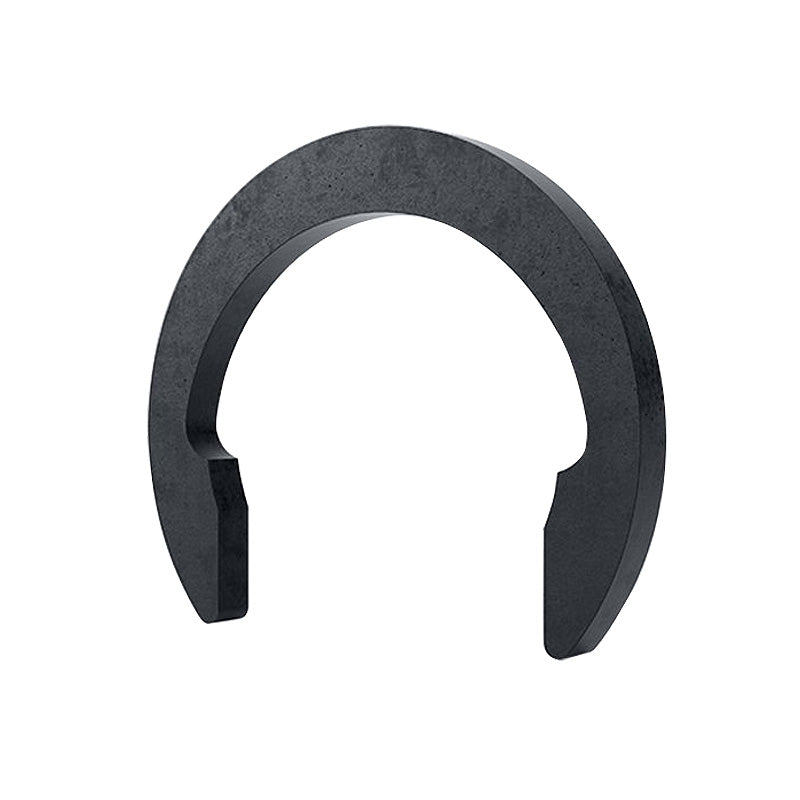

N1800-050 Imperial Crescent Ring for 1/2 inch Diameter Shafts
N1800-050 Imperial Crescent Ring for 1/2 inch Diameter Shafts
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
Equivalent to: N1800-050
In stock
Price Break
10+
$0.43
20+
$0.29
50+
$0.18
100+
$0.13
500+
$0.07
1000+
$0.05
Quantity
Couldn't load pickup availability
Description
Description
Crescent Rings: These crescent rings are an alternative clip style, similar to standard style circlips.
The advantage of using these crescent rings is that they provide greater clearance around the outside diameter as they do not have lugs.
Benefits: Cost effective replacement, durable, removable.
- Brand / Quality:
- Simply Crescent Rings - Economy Quality
- Shaft Size:
- 12.7mm = 0.5 (1/2) inch
- Thickness:
- 0.89mm = 0.035 inch
Technical
Technical
| Shaft Size (S) | 0.500 inch = 1/2 inch |
|---|---|
| Shaft Tolerance | -0.006 to +0.000 inch |
| Thickness (t) | 0.035 inch |
| Thickness Tolerance | +.002 inch |
| Free Diameter (D) | 0.441 inch |
| Free Diameter Tolerance | +.006 inch |
| Circlip in Groove | 0.6 inch |
