SKU: N219ECP-SKF

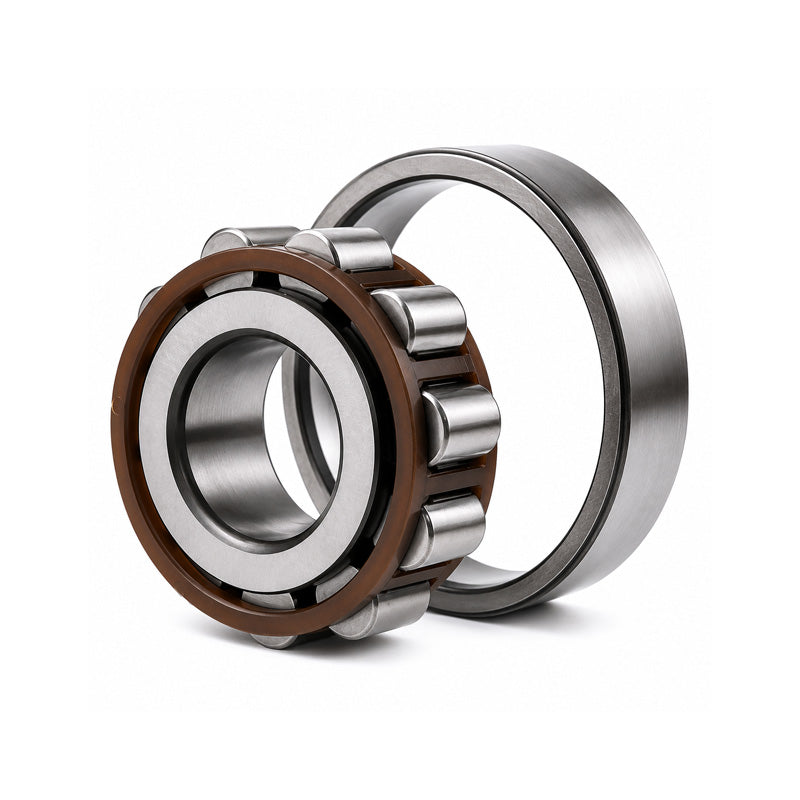

SKF N219ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x32mm

Name: SKF N219ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x32mm
Brand: SKF
SKU: N219ECP-SKF
Price: 584.08 USD
Availability: InStock

$584.08 ex VAT

Sale Sold out

In stock

Price Break

10+ $391.23

19+ $369.26

29+ $364.86

39+ $360.46

49+ $356.07

74+ $351.67

99+ $329.69

199+ $325.30

249+ $320.90

499+ $316.50

999+ $307.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 95mm
Outside Diameter:: 170mm
Width:: 32mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	95mm
D	170mm
B	32mm
Dynamic load C	255 kN
Static load Co	265 kN
Fatigue load limit Pu	32.5 kN
Reference speed	4300 rpm
Limiting speed	4800 rpm
Weight	2.85 kg
d1	120mm
F,E	154.5mm
r1r2 min	2.1mm
r3r4 min	2.1mm
S	1.7mm
da min	107mm
da max	152mm
db	157mm
Da max	158mm
ra max	2mm
rb max	2mm
kr	0.15
