SKU: N304ECP-SKF

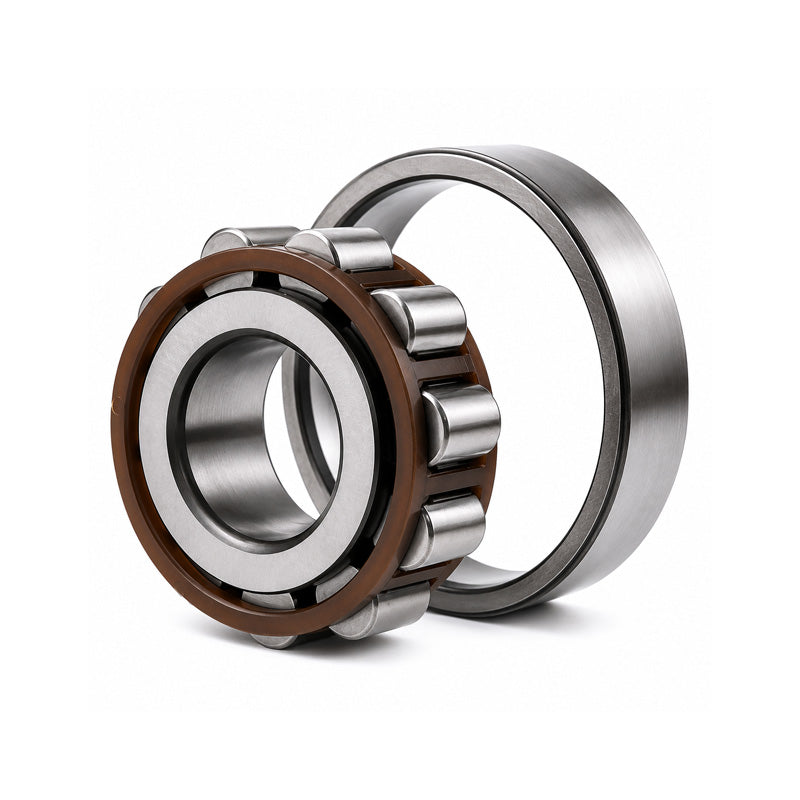

SKF N304ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x15mm
SKF N304ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x15mm
Regular price
$72.65
ex VAT
Regular price
Sale price
$72.65
ex VAT
In stock
Price Break
10+
$48.67
19+
$45.93
29+
$45.38
39+
$44.84
49+
$44.29
74+
$43.74
99+
$41.01
199+
$40.46
249+
$39.92
499+
$39.37
999+
$38.28
Quantity
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 35.5 kN |
| Static load Co | 26 kN |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.15 kg |
| d1 | 31.2mm |
| F,E | 45.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| S | 0.9mm |
| da min | 27mm |
| da max | 44mm |
| db | 47mm |
| Da max | 47.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
