• N308 Budget Single Row Cylindrical Roller Bearing 40x90x23mm
1 1

SKU: N308-EU

N308 Budget Single Row Cylindrical Roller Bearing 40x90x23mm

N308 Budget Single Row Cylindrical Roller Bearing 40x90x23mm
$58.53 ex VAT
$58.53 ex VAT
Sale Sold out

In stock

Price Break
10+ $39.20
19+ $37.00
29+ $36.56
39+ $36.12
49+ $35.68
74+ $35.24
99+ $33.04
199+ $32.60
249+ $32.16
499+ $31.72
999+ $30.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

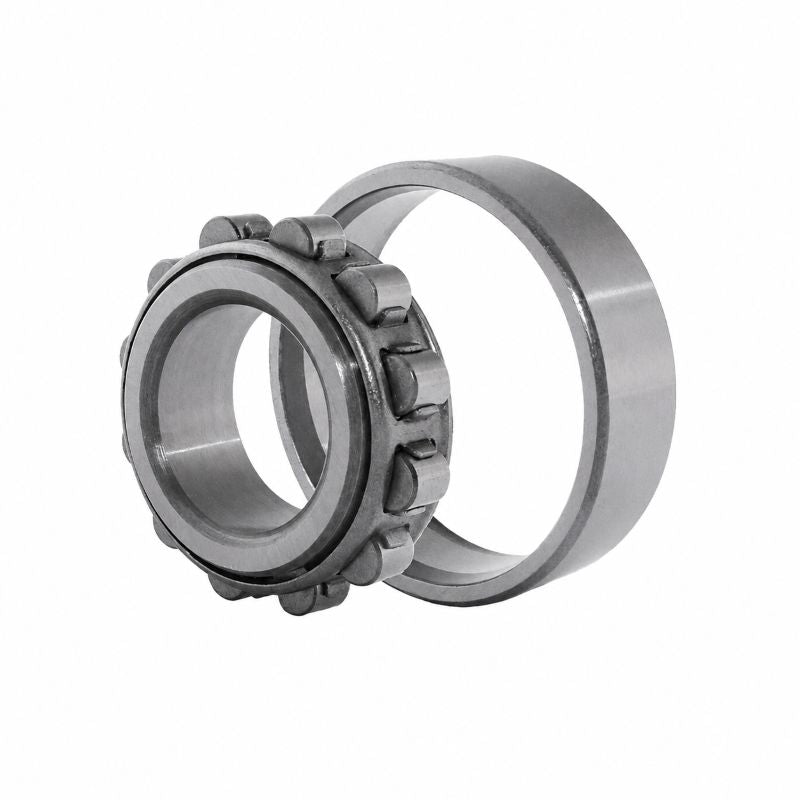

N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 40mm
D 90mm
B 23mm
Dynamic load C 93 kN
Static load Co 78 kN
Fatigue load limit Pu 10.2 kN
Reference speed 8000 rpm
Limiting speed 9500 rpm
Weight 0.65 kg
d1 57.5mm
F, E 80mm
r1r2 min 1.5mm
r3r4 min 1.5mm
s 1.4mm
da min 49mm
da max 78mm
db min 82mm
Da max 81mm
ra max 1.5mm
rb max 1.5mm
kr 0.15
