SKU: N309ECP-SKF

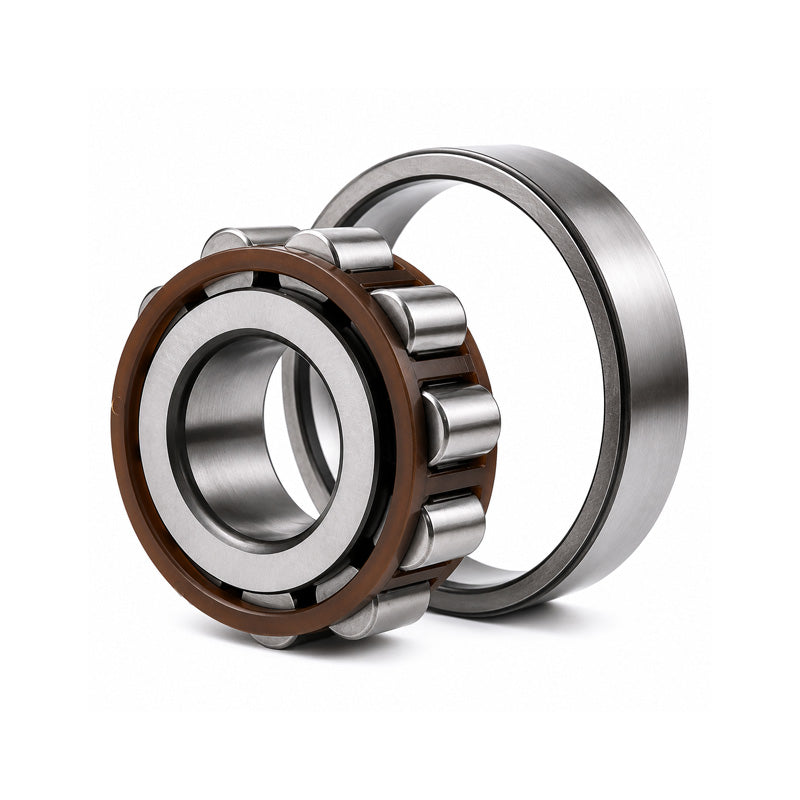

SKF N309ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x25mm
SKF N309ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x25mm
Regular price
$150.41
ex VAT
Regular price
Sale price
$150.41
ex VAT
In stock
Price Break
10+
$100.75
19+
$95.09
29+
$93.95
39+
$92.82
49+
$91.69
74+
$90.56
99+
$84.90
199+
$83.77
249+
$82.63
499+
$81.50
999+
$79.24
Quantity
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 112 kN |
| Static load Co | 100 kN |
| Fatigue load limit Pu | 12.9 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.88 kg |
| d1 | 64.4mm |
| F,E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.7mm |
| da min | 54mm |
| da max | 86mm |
| db | 91mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
