• N316 Budget Single Row Cylindrical Roller Bearing 80x170x39mm
1 1

SKU: N316-EU

N316 Budget Single Row Cylindrical Roller Bearing 80x170x39mm

N316 Budget Single Row Cylindrical Roller Bearing 80x170x39mm
$216.44 ex VAT
$216.44 ex VAT
Sale Sold out

In stock

Price Break
10+ $144.98
19+ $136.84
29+ $135.21
39+ $133.58
49+ $131.95
74+ $130.32
99+ $122.17
199+ $120.55
249+ $118.92
499+ $117.29
999+ $114.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

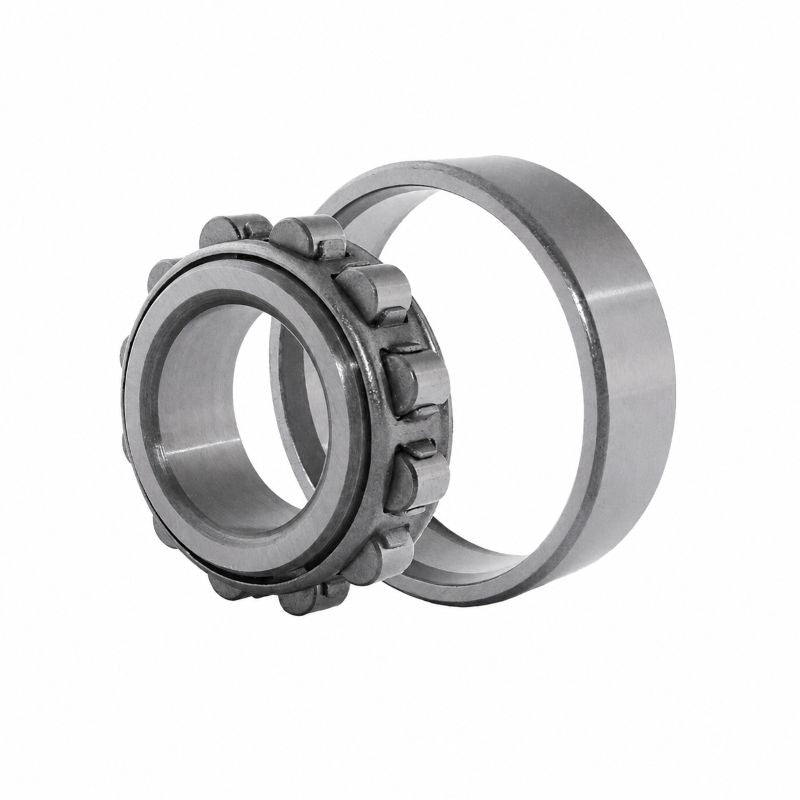

N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
80mm
Outside Diameter:
170mm
Width:
39mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 80mm
D 170mm
B 39mm
Dynamic load C 300 kN
Static load Co 290 kN
Fatigue load limit Pu 36 kN
Reference speed 4300 rpm
Limiting speed 5000 rpm
Weight 3.9 kg
Cage options M
d1 110mm
F, E 151mm
r1r2 min 2.1mm
r3r4 min 2.1mm
s 2.1mm
da min 92mm
da max 148mm
db min 154mm
Da max 158mm
ra max 2mm
rb max 2mm
kr 0.15
