SKU: N670-SKF

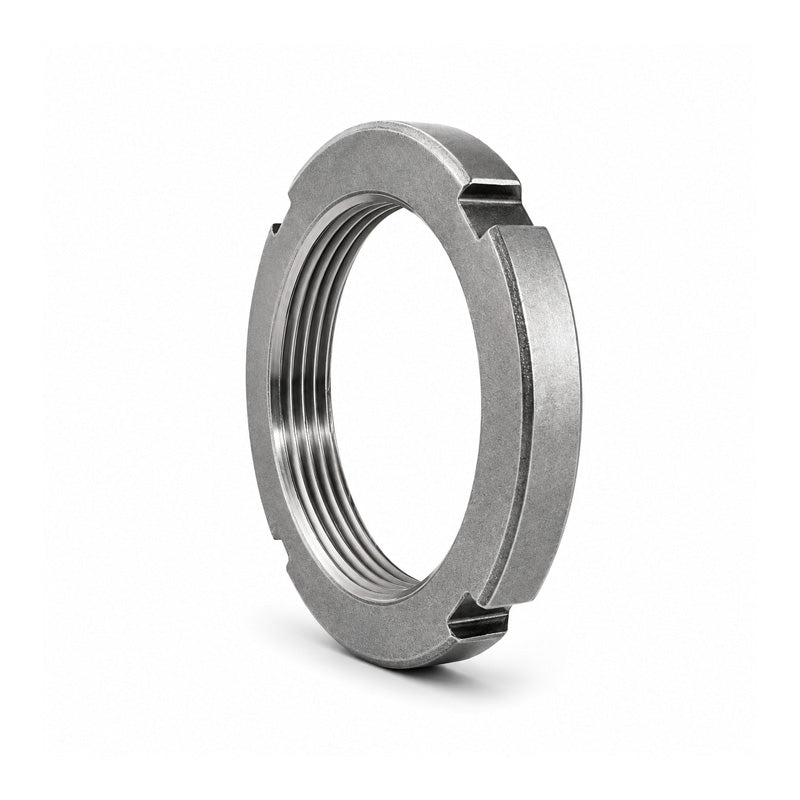

SKF N670 Lock Nut (Lock Washer Type) 26.379x29.125x30.693 inch
SKF N670 Lock Nut (Lock Washer Type) 26.379x29.125x30.693 inch
Out of stock
Share this product
Description
Description
Low Profile Lock Nuts: These lock nuts are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. These low profile lock nuts are commonly used with bearings in the 23048, 23148 and 23248 series and larger.
Benefits: Efficient, secure, inexpensive, removable and re-useable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 26.379 inch
Technical
Technical
| G | 26.379 inch |
|---|---|
| Threads per inch | 4 |
| d<sub>1</sub> | 29.125 inch |
| d<sub>2</sub> | 28.985 inch |
| d<sub>3</sub> max | 30.693 inch |
| B | 3.14 inch |
| B<sub>5</sub> | 3.699 inch |
| b | 1.855 inch |
| h | 0.823 inch |
| Mass | 76.6571 kg |
| Associated spanner | TMFN600-750 |
| Associated locking device | PL670 |
| Hexagonal head bolt | 5/8-11x1-1/4 |
