SKU: NA0-25X40X17-NTN

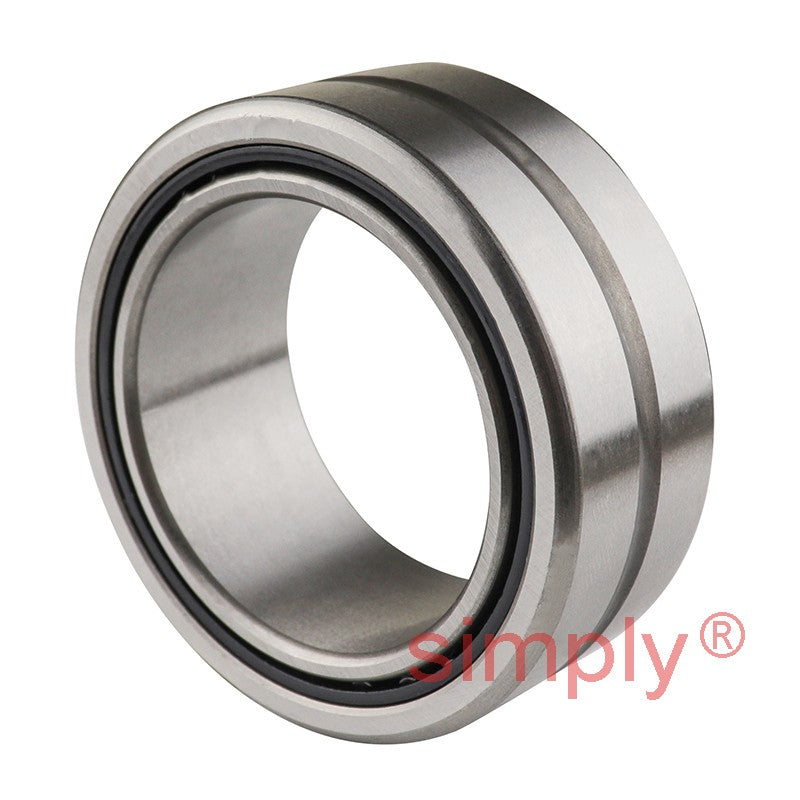

NTN NA0-25X40X17 Seperable Machined Needle Roller Bearing with Shaft Sleeve 20x40x17mm - Allow 2-3 Days

NTN NA0-25X40X17 Seperable Machined Needle Roller Bearing with Shaft Sleeve 20x40x17mm - Allow 2-3 Days
Regular price $26.48 ex VAT
Regular price Sale price $26.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.73
4+ $18.93
9+ $18.53
19+ $17.94
49+ $17.54
99+ $16.54
499+ $13.95
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

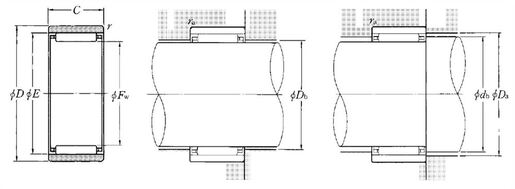

d - Inside diameter 20mm
D - Outside diameter 40mm
C - Width of bearing, drawn cup or outer ring 17mm
F - Under roller diameter 30mm
E - Upper roller diameter 35
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 19.4 kN
C0r - Static load rating 32.5 kN
N - Grease lubrication limit speed 9000 tr/min
N - Oil lubrication limit speed 13000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 27mm
db - Inner ring shoulder diameter 34.4mm
Da max - Outer ring maximum shoulder diameter 38mm
Db max - Outer ring maximum smooth shaft shoulder diameter 30.6mm
ras max - Maximum shaft & housing fillet radius 0.3mm
