SKU: NA0-35X50X17-NTN

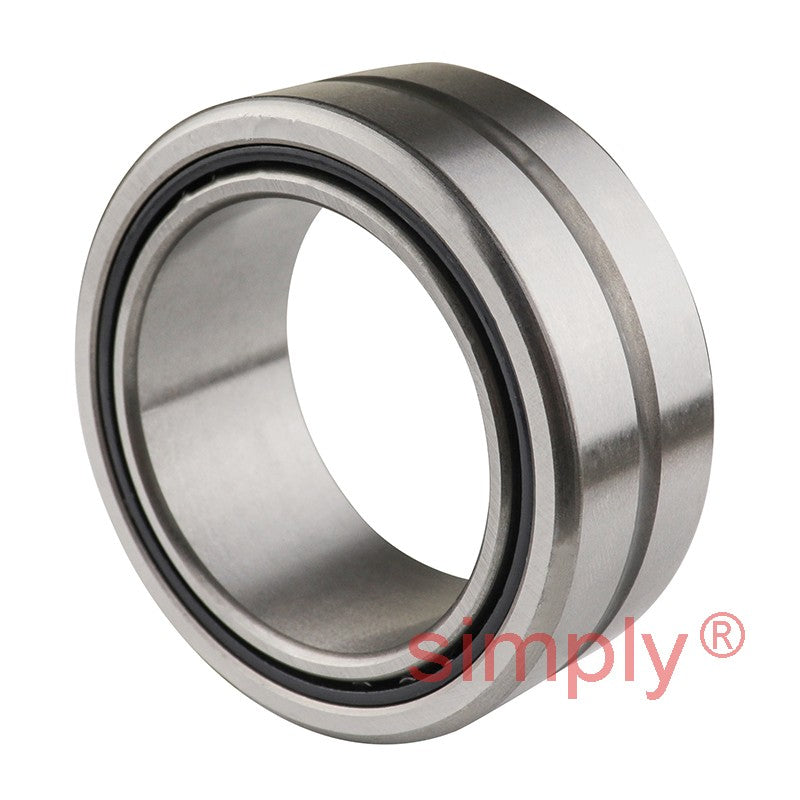

NTN NA0-35X50X17 Seperable Machined Needle Roller Bearing with Shaft Sleeve 33x50x17mm - Allow 2-3 Days

NTN NA0-35X50X17 Seperable Machined Needle Roller Bearing with Shaft Sleeve 33x50x17mm - Allow 2-3 Days
Regular price $35.34 ex VAT
Regular price Sale price $35.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.32
4+ $25.26
9+ $24.73
19+ $23.93
49+ $23.40
99+ $22.07
499+ $18.61
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 33mm
D - Outside diameter 50mm
C - Width of bearing, drawn cup or outer ring 17mm
F - Under roller diameter 40mm
E - Upper roller diameter 45
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 21.8 kN
C0r - Static load rating 41.5 kN
N - Grease lubrication limit speed 6500 tr/min
N - Oil lubrication limit speed 10000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 37mm
db - Inner ring shoulder diameter 44.4mm
Da max - Outer ring maximum shoulder diameter 48mm
Db max - Outer ring maximum smooth shaft shoulder diameter 40.6mm
ras max - Maximum shaft & housing fillet radius 0.3mm
