SKU: NA22/8XLL/3AS-NTN

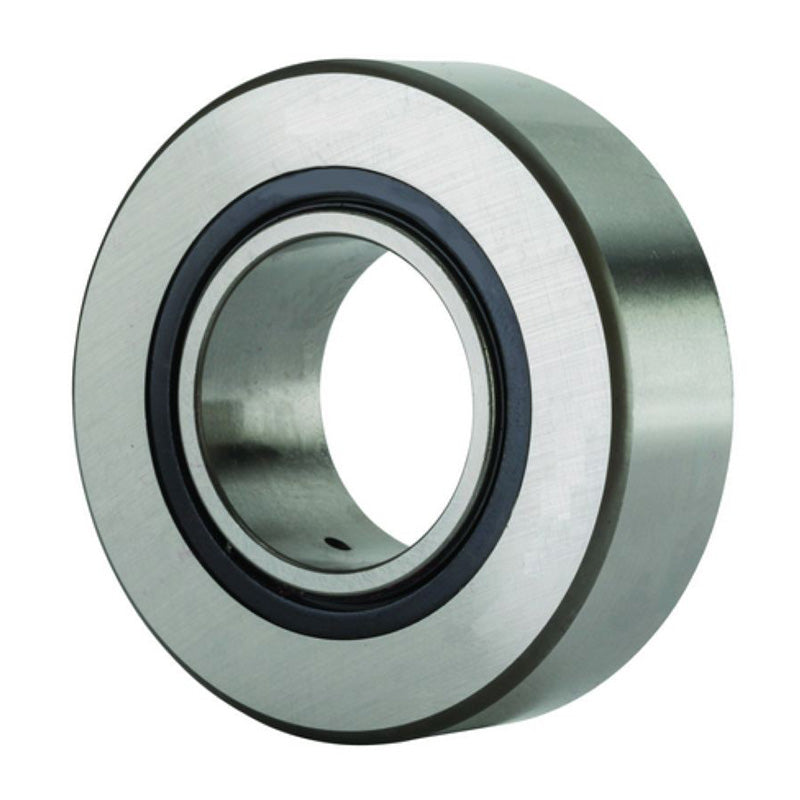

NTN NA22/8XLL/3AS Yoke Type Track Roller with Inner Race 8x24x11.8mm - Allow 2-3 Days
NTN NA22/8XLL/3AS Yoke Type Track Roller with Inner Race 8x24x11.8mm - Allow 2-3 Days
Regular price
$23.53
ex VAT
Regular price
Sale price
$23.53
ex VAT
In stock
Price Break
3+
$17.53
4+
$16.82
9+
$16.47
19+
$15.94
49+
$15.58
99+
$14.70
499+
$12.40
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NTN NA22 Type Track Rollers: These track rollers are precision-engineered cam followers designed to deliver dependable performance in high-load and high-speed applications. Featuring a thick-walled outer ring with a full complement of needle rollers, these bearings offer excellent rigidity, load capacity, and resistance to wear. The NA22 series combines NTN’s superior bearing technology with durable sealing and pre-lubrication to ensure smooth operation and minimal maintenance. Ideal for conveyors, linear motion systems, cam drives, and automated machinery.
Benefits: Exceptional load capacity, long service life, precision performance
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 24mm
- Width:
- 11.8mm
Technical
Technical

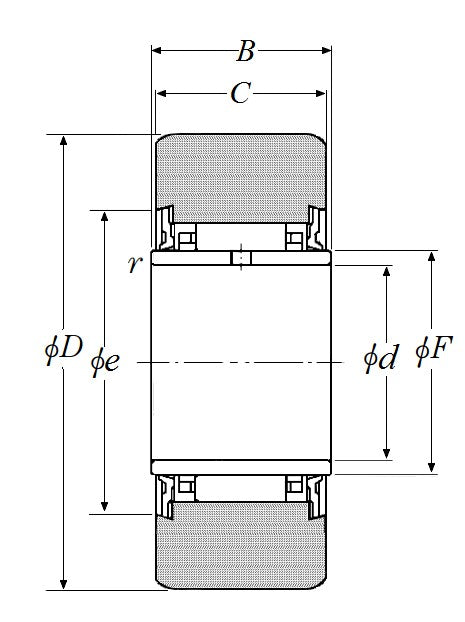

| d - Inside diameter | 8mm |
|---|---|
| D - Outside diameter | 24mm |
| C - Outer ring width | 11.8mm |
| F - Under roller diameter | 12mm |
| B - Bearing width | 12mm |
| e - Inlet diameter | 18mm |
| rs - Minimum fillet radius | 0.3mm |
| Bearing with/without cage | With |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 5.15 kN |
| C0r - Static load rating | 5.25 kN |
| Track load capacity | 5.5 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
