SKU: NA2203LL/3AS-NTN

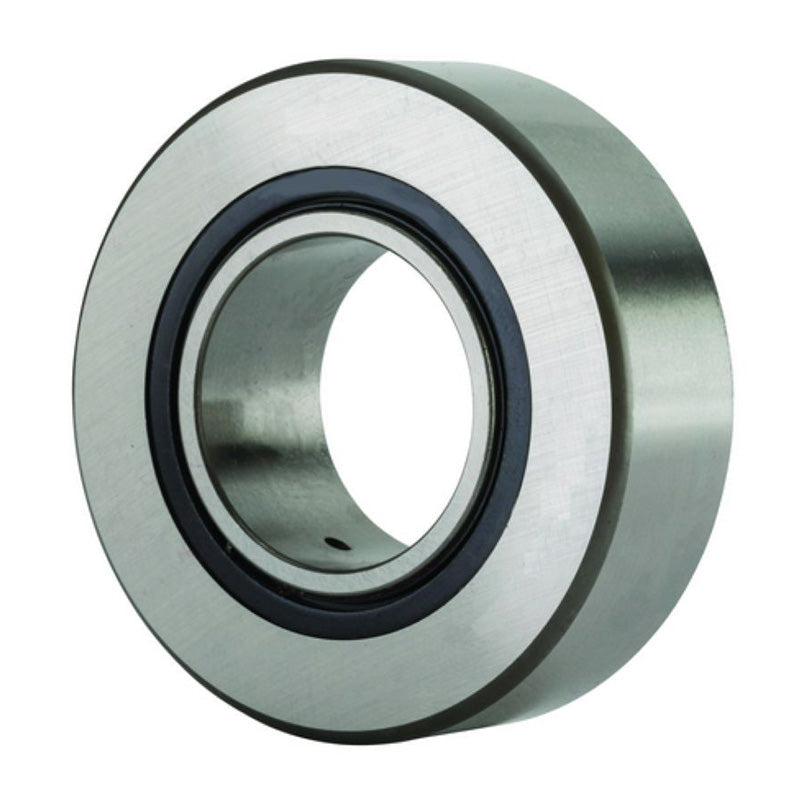

NTN NA2203LL/3AS Yoke Type Track Roller with Inner Race 17x40x15.8mm - Allow 2-3 Days
NTN NA2203LL/3AS Yoke Type Track Roller with Inner Race 17x40x15.8mm - Allow 2-3 Days
Regular price
$41.18
ex VAT
Regular price
Sale price
$41.18
ex VAT
In stock
Price Break
3+
$30.68
4+
$29.44
9+
$28.82
19+
$27.89
49+
$27.27
99+
$25.72
499+
$21.69
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NTN NA22 Type Track Rollers: These track rollers are precision-engineered cam followers designed to deliver dependable performance in high-load and high-speed applications. Featuring a thick-walled outer ring with a full complement of needle rollers, these bearings offer excellent rigidity, load capacity, and resistance to wear. The NA22 series combines NTN’s superior bearing technology with durable sealing and pre-lubrication to ensure smooth operation and minimal maintenance. Ideal for conveyors, linear motion systems, cam drives, and automated machinery.
Benefits: Exceptional load capacity, long service life, precision performance
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 15.8mm
Technical
Technical
| d - Inside diameter | 17mm |
|---|---|
| D - Outside diameter | 40mm |
| C - Outer ring width | 15.8mm |
| F - Under roller diameter | 22mm |
| B - Bearing width | 16mm |
| e - Inlet diameter | 28mm |
| R - Track roller radius | 500mm |
| rs - Minimum fillet radius | 0.3mm |
| Bearing with/without cage | With |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 10.4 kN |
| C0r - Static load rating | 15.6 kN |
| Track load capacity | 3.85 kN |
| N - Grease lubrication limit speed | 7000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
