SKU: NA2206XLL/3AS-NTN

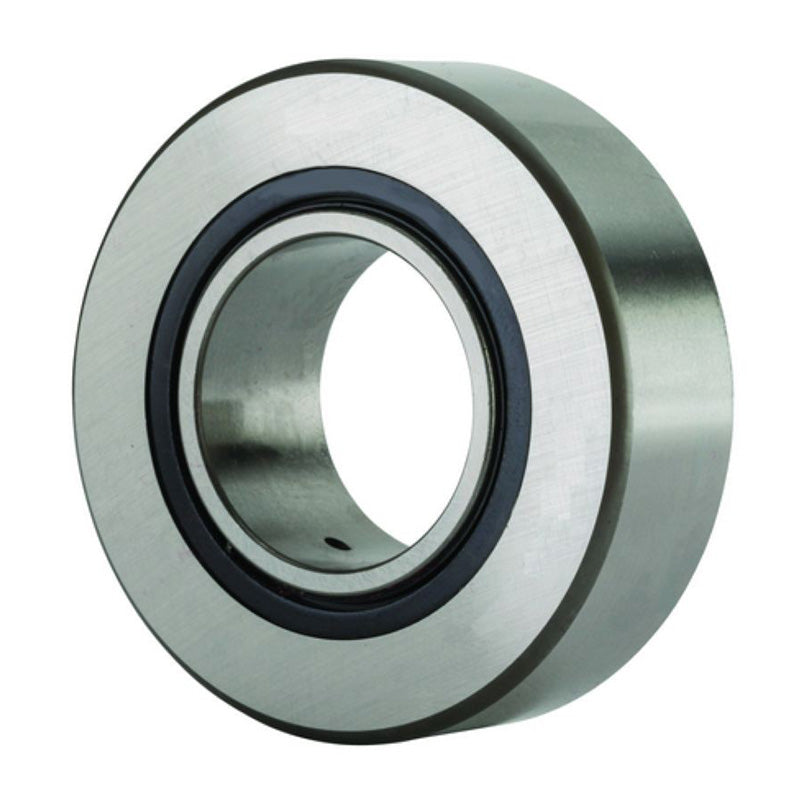

NTN NA2206XLL/3AS Yoke Type Track Roller with Inner Race 30x62x19.8mm - Allow 2-3 Days
NTN NA2206XLL/3AS Yoke Type Track Roller with Inner Race 30x62x19.8mm - Allow 2-3 Days
Regular price
$73.54
ex VAT
Regular price
Sale price
$73.54
ex VAT
In stock
Price Break
3+
$54.79
4+
$52.57
9+
$51.47
19+
$49.81
49+
$48.70
99+
$45.93
499+
$38.74
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NTN NA22 Type Track Rollers: These track rollers are precision-engineered cam followers designed to deliver dependable performance in high-load and high-speed applications. Featuring a thick-walled outer ring with a full complement of needle rollers, these bearings offer excellent rigidity, load capacity, and resistance to wear. The NA22 series combines NTN’s superior bearing technology with durable sealing and pre-lubrication to ensure smooth operation and minimal maintenance. Ideal for conveyors, linear motion systems, cam drives, and automated machinery.
Benefits: Exceptional load capacity, long service life, precision performance
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 19.8mm
Technical
Technical
| d - Inside diameter | 30mm |
|---|---|
| D - Outside diameter | 62mm |
| C - Outer ring width | 19.8mm |
| F - Under roller diameter | 35mm |
| B - Bearing width | 20mm |
| e - Inlet diameter | 43mm |
| rs - Minimum fillet radius | 0.3mm |
| Bearing with/without cage | With |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 21.4 kN |
| C0r - Static load rating | 34.5 kN |
| Track load capacity | 22.2 kN |
| N - Grease lubrication limit speed | 4300 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
