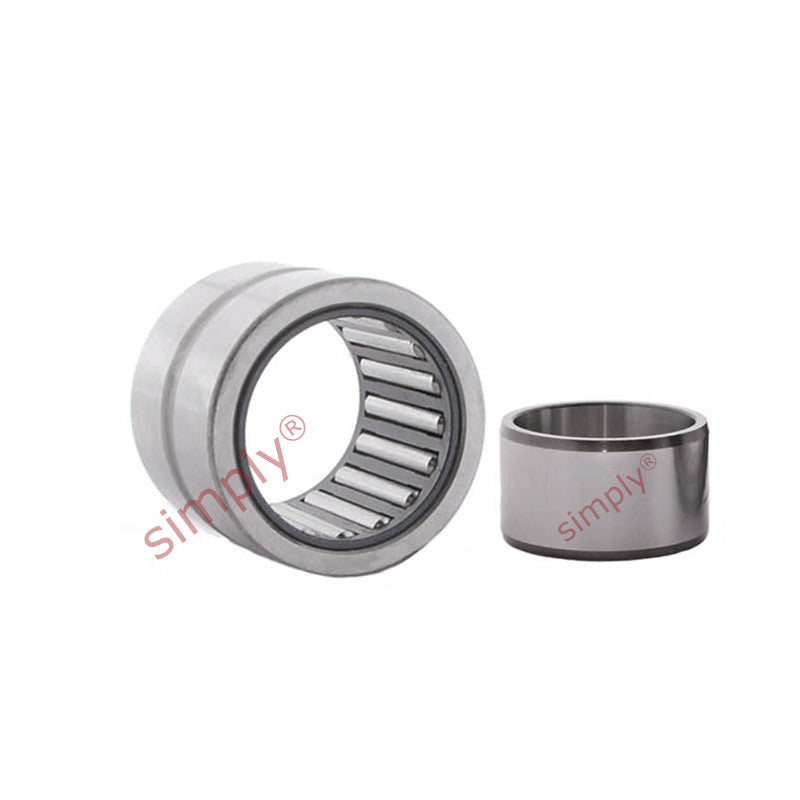

• NA4824 Budget Needle Roller Bearing / Shaft Sleeve 120x150x30mm
1 1

SKU: NA4824-EU

NA4824 Budget Needle Roller Bearing / Shaft Sleeve 120x150x30mm

NA4824 Budget Needle Roller Bearing / Shaft Sleeve 120x150x30mm
$266.10 ex VAT
$266.10 ex VAT
Sale Sold out

In stock

Price Break
10+ $178.24
19+ $168.23
29+ $166.22
39+ $164.22
49+ $162.22
74+ $160.21
99+ $150.20
199+ $148.20
249+ $146.20
499+ $144.19
999+ $140.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes.
Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
120mm
Outside Diameter:
150mm
Width:
30mm
Technical
d 120mm
D 150mm
B 30mm
Dynamic load C 99000 N
Static load Co 255000 N
Fatigue load limit Pu 30000 N
Speed in grease 2000 rpm
Speed in oil 3200 rpm
F 130mm
r1r2 1mm
S (axial disp) 0.8mm
da min 125mm
Da max 145mm
ra max 1mm
