• NA4901 Budget Needle Roller Bearing / Shaft Sleeve 12x24x13mm
1 1

SKU: NA4901-EU

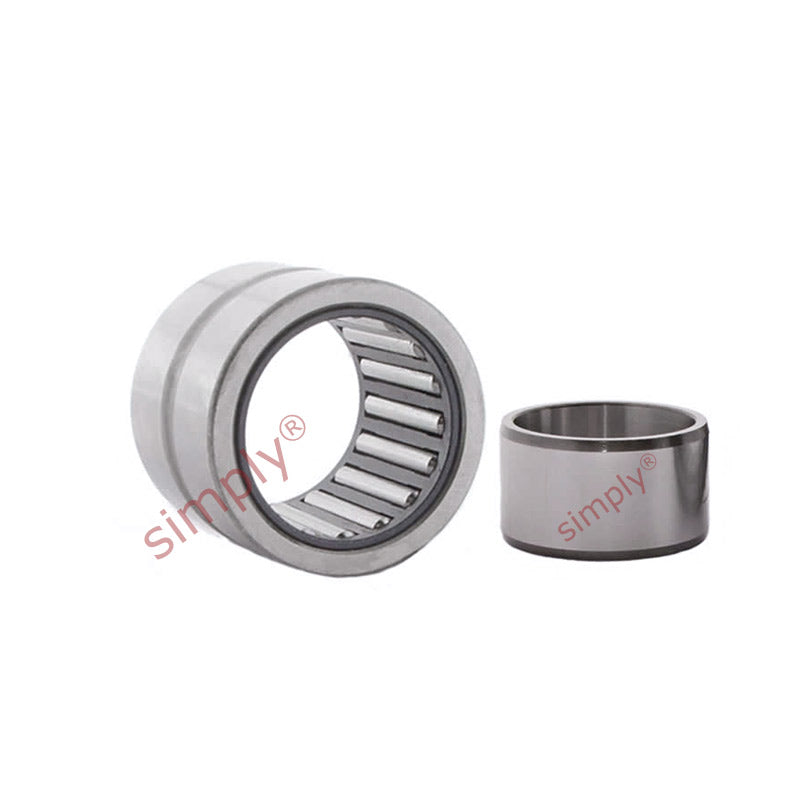

NA4901 Budget Needle Roller Bearing / Shaft Sleeve 12x24x13mm

NA4901 Budget Needle Roller Bearing / Shaft Sleeve 12x24x13mm
$22.14 ex VAT
$22.14 ex VAT
Sale Sold out

In stock

Price Break
10+ $14.83
19+ $14.00
29+ $13.83
39+ $13.66
49+ $13.50
74+ $13.33
99+ $12.50
199+ $12.33
249+ $12.16
499+ $12.00
999+ $11.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes.
Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
24mm
Width:
13mm
Technical
d 12mm
D 24mm
B 13mm
Dynamic load C 9900 N
Static load Co 12200 N
Fatigue load limit Pu 1460 N
Speed in grease 16000 rpm
Speed in oil 24000 rpm
F 16mm
r1r2 0.3mm
S (axial disp) 0.5mm
da min 14mm
Da max 22mm
ra max 0.3mm
