SKU: NA4906LL/3AS-NTN

NTN NA4906LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 30x47x17mm - Allow 2-3 Days

NTN NA4906LL/3AS Machined Needle Roller Bearing with Shaft Sleeve 30x47x17mm - Allow 2-3 Days
Regular price $41.18 ex VAT
Regular price Sale price $41.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.68
4+ $29.44
9+ $28.82
19+ $27.89
49+ $27.27
99+ $25.72
499+ $21.69
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

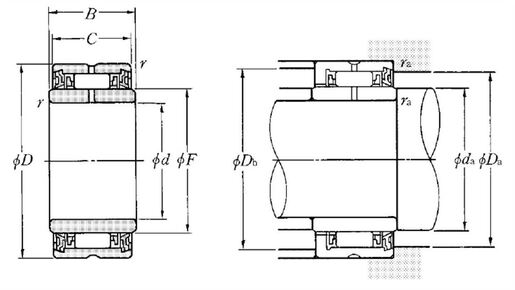

d - Inside diameter 30mm
D - Outside diameter 47mm
B - Width of bearing / Inner ring 18mm
C - Width of bearing, drawn cup or outer ring 17mm
F - Under roller diameter 35mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Lubrication hole on innr ring? Yes
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 18 kN
C0r - Static load rating 27.4 kN
N - Grease lubrication limit speed 5500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
da min - Inner ring minimum shoulder diameter 32mm
Da max - Outer ring maximum shoulder diameter 38mm
Db max - Outer ring maximum smooth shaft shoulder diameter 45mm
ras max - Maximum shaft & housing fillet radius 0.3mm
