• NA4924 Budget Needle Roller Bearing / Shaft Sleeve 120x165x45mm
1 1

SKU: NA4924-EU

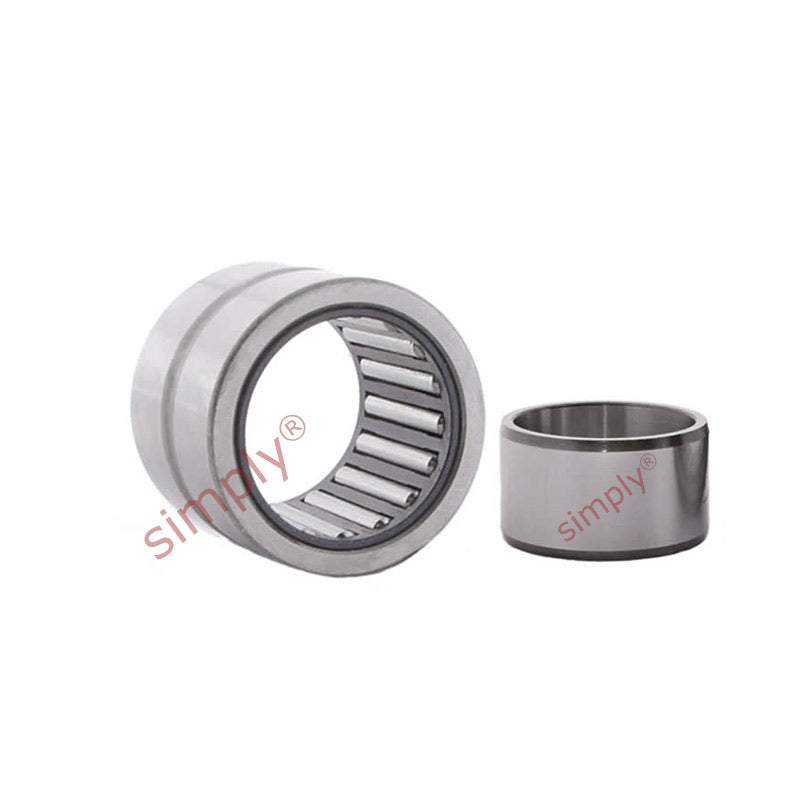

NA4924 Budget Needle Roller Bearing / Shaft Sleeve 120x165x45mm

NA4924 Budget Needle Roller Bearing / Shaft Sleeve 120x165x45mm
$335.46 ex VAT
$335.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $224.70
19+ $212.08
29+ $209.55
39+ $207.03
49+ $204.50
74+ $201.98
99+ $189.35
199+ $186.83
249+ $184.31
499+ $181.78
999+ $176.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes.
Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
120mm
Outside Diameter:
165mm
Width:
45mm
Technical
d 120mm
D 165mm
B 45mm
Dynamic load C 176000 N
Static load Co 405000 N
Fatigue load limit Pu 47500 N
Speed in grease 1900 rpm
Speed in oil 3000 rpm
F 135mm
r1r2 1.1mm
S (axial disp) 2mm
da min 126.5mm
Da max 158.5mm
ra max 1mm
