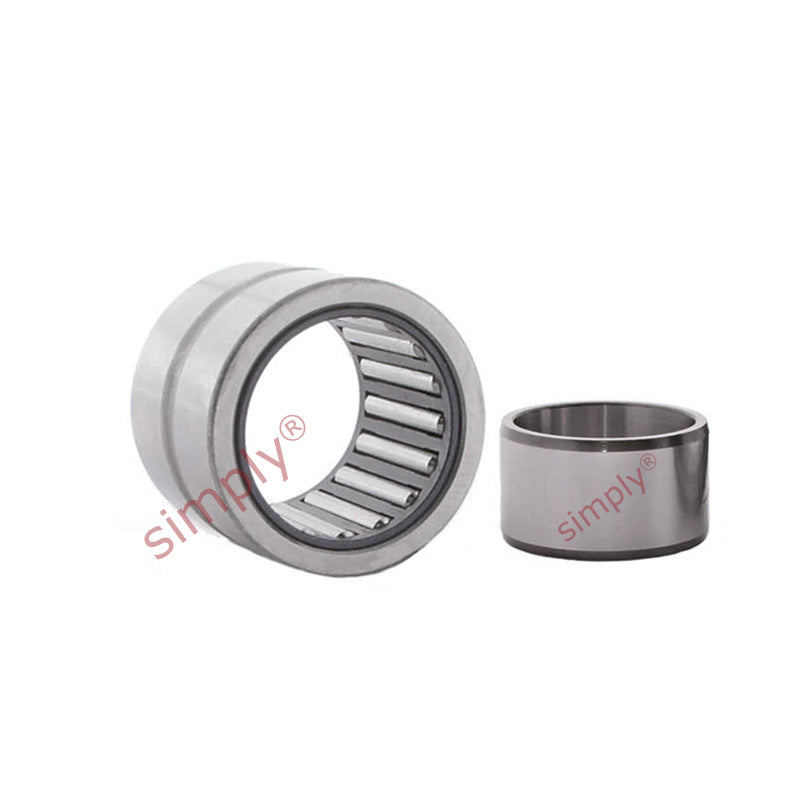

• NA6903 Budget Needle Roller Bearing / Shaft Sleeve 17x30x23mm
1 1

SKU: NA6903-EU

NA6903 Budget Needle Roller Bearing / Shaft Sleeve 17x30x23mm

NA6903 Budget Needle Roller Bearing / Shaft Sleeve 17x30x23mm
$27.36 ex VAT
$27.36 ex VAT
Sale Sold out

In stock

Price Break
10+ $18.32
19+ $17.29
29+ $17.09
39+ $16.88
49+ $16.68
74+ $16.47
99+ $15.44
199+ $15.24
249+ $15.03
499+ $14.82
999+ $14.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes.
Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Outside Diameter:
30mm
Width:
23mm
Technical
d 17mm
D 30mm
B 23mm
Dynamic load C 18700 N
Static load Co 30500 N
Fatigue load limit Pu 3900 N
Speed in grease 12000 rpm
Speed in oil 18000 rpm
F 22mm
r1r2 0.3mm
S (axial disp) 1mm
da min 19mm
Da max 28mm
ra max 0.3mm
