• Major Brand NAO35x55x20 Needle Roller Bearings with Machined Rings and an Inner Ring
1 1

SKU: NAO35x55x20-MB

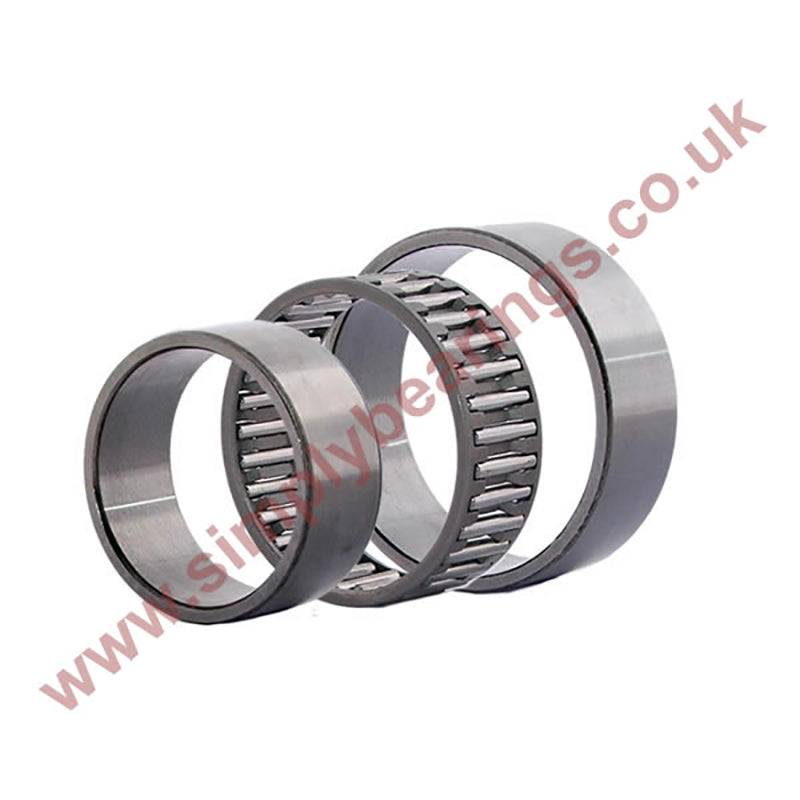

Major Brand NAO35x55x20 Needle Roller Bearings with Machined Rings and an Inner Ring

Major Brand NAO35x55x20 Needle Roller Bearings with Machined Rings and an Inner Ring
$51.46 ex VAT
$51.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $34.47
19+ $32.54
29+ $32.15
39+ $31.76
49+ $31.38
74+ $30.99
99+ $29.05
199+ $28.66
249+ $28.28
499+ $27.89
999+ $27.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting.
Benefits: Separable, ease of mounting.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
35mm
Outside Diameter:
55mm
Width:
20mm
Technical
d 35mm
D 55mm
B 20mm
Dynamic load 31400 N
Static load 57000 N
Fatigue load limit Pu 6950 N
Speed in grease 7000 rpm
Speed in oil 10000 rpm
E 48mm
F 40mm
r1r2 min 0.3mm
S (axial disp) 0.8mm
da 46.2mm
db 39.5mm
Da 47.5mm
Db 40.6mm
ra max 0.3mm
Weight 190 g
