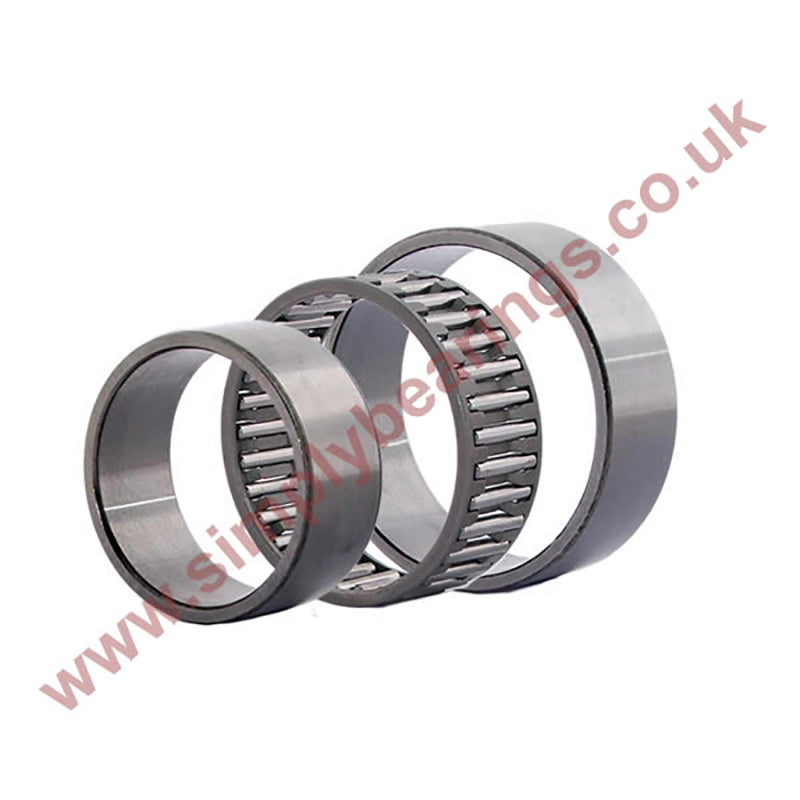

NAO40x55x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve and Oil Groove

Name: NAO40x55x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve and Oil Groove
Brand: Gen
SKU: NAO40X55X17.OH-EU
Price: 27.64 USD
Availability: InStock

$27.64 ex VAT

Sale Sold out

Low stock

Price Break

10+ $18.51

19+ $17.47

29+ $17.26

39+ $17.06

49+ $16.85

74+ $16.64

99+ $15.60

199+ $15.39

249+ $15.18

499+ $14.98

999+ $14.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting.
Benefits: Separable, ease of mounting.

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 40mm
Outside Diameter:: 55mm
Width:: 17mm

Technical

d	40mm
D	55mm
B	17mm
Dynamic load C	21600 N
Static load Co	46500 N
Fatigue load limit Pu	5600 N
Speed in grease	6300 rpm
Speed in oil	9000 rpm
E	50mm
F	45mm
r1r2 min	0.3mm
S (axial disp)	0.8mm
da	49.2mm
db	44.5mm
Da	50.5mm
Db	45.6mm
ra max	0.3mm
Weight	130 g
