SKU: NAO80x110x30-MB
Major Brand NAO80x110x30 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO80x110x30 Needle Roller Bearings with Machined Rings and an Inner Ring
Out of stock
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 110mm
- Width:
- 30mm
Technical
Technical

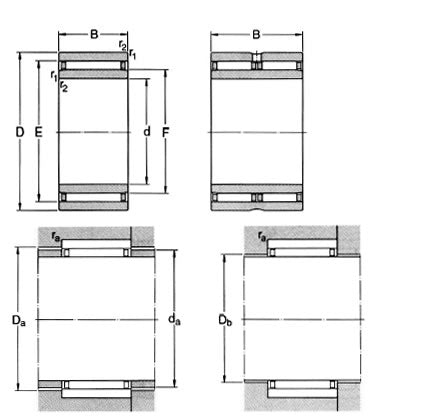

| d | 80mm |
|---|---|
| D | 110mm |
| B | 30mm |
| Dynamic load | 64400 N |
| Static load | 173000 N |
| Fatigue load limit Pu | 21600 N |
| Speed in grease | 3200 rpm |
| Speed in oil | 4500 rpm |
| E | 98mm |
| F | 90mm |
| r1r2 min | 1mm |
| S (axial disp) | 1mm |
| da | 97.2mm |
| db | 89.3mm |
| Da | 99mm |
| Db | 91mm |
| ra max | 1mm |
| Weight | 920 g |
