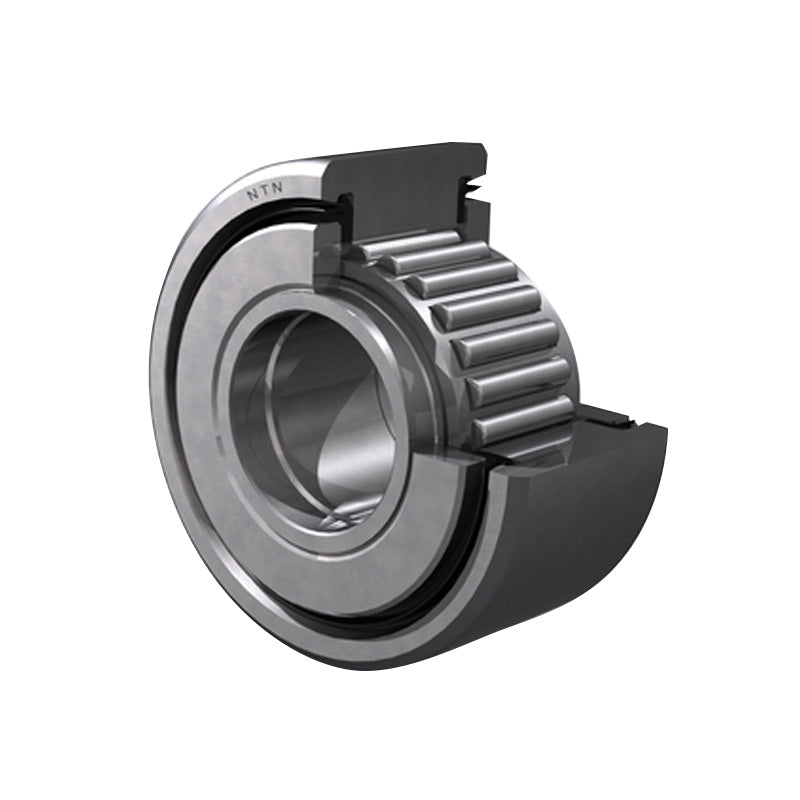

• NTN NATR25LL/3AS Yoke Type Track Roller with Inner Race 25x52x24mm
  • NTN
1 2

SKU: NATR25LL/3AS-NTN

NTN NATR25LL/3AS Yoke Type Track Roller with Inner Race 25x52x24mm

NTN NATR25LL/3AS Yoke Type Track Roller with Inner Race 25x52x24mm
$44.56 ex VAT
$44.56 ex VAT
Sale Sold out

In stock

Price Break
3+ $29.85
4+ $28.17
9+ $27.84
19+ $27.50
49+ $27.17
99+ $26.83
499+ $25.16
999+ $24.82
1999+ $24.48
2999+ $24.15
4999+ $23.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
24mm
Technical
d - Inside diameter 25mm
D - Outside diameter 52mm
C - Outer ring width 24mm
F - Under roller diameter 30mm
B - Bearing width 25mm
e - Inlet diameter 42mm
R - Track roller radius 500mm
Bearing with/without cage With
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 22.8 kN
C0r - Static load rating 40.5 kN
Track load capacity 5.5 kN
N - Grease lubrication limit speed 5000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
