SKU: NATR6-NTN

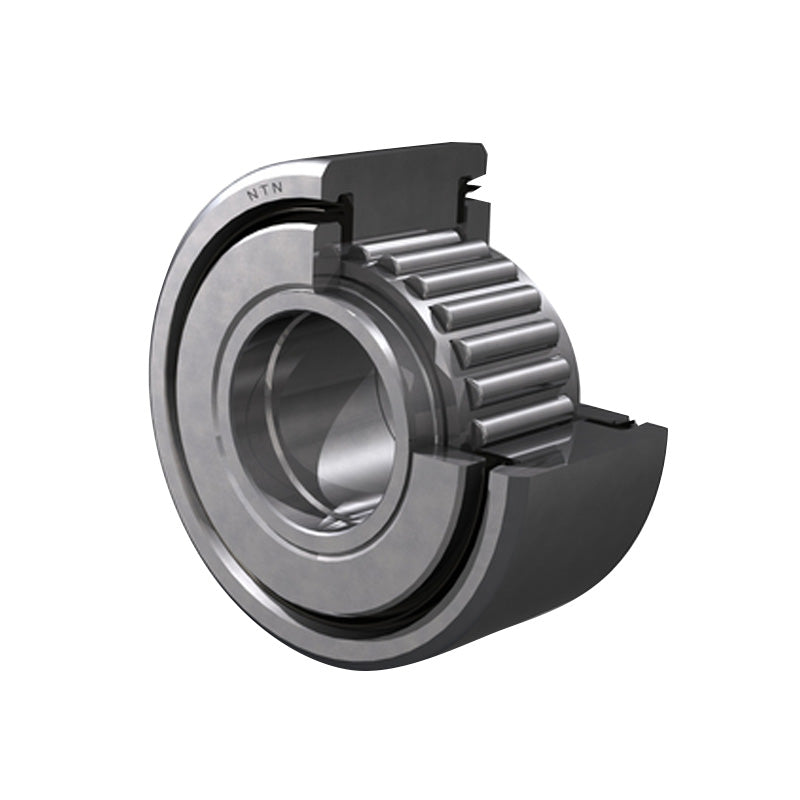

NTN NATR6 Yoke Type Track Roller with Inner Race 6x19x11mm

Name: NTN NATR6 Yoke Type Track Roller with Inner Race 6x19x11mm
Brand: NTN
SKU: NATR6-NTN
Price: 16.86 USD
Availability: InStock

$16.86 ex VAT

Sale Sold out

In stock

Price Break

3+ $11.29

4+ $10.66

9+ $10.53

19+ $10.41

49+ $10.28

99+ $10.15

499+ $9.52

999+ $9.39

1999+ $9.26

2999+ $9.14

4999+ $8.88

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

d - Inside diameter	6mm
D - Outside diameter	19mm
C - Outer ring width	11mm
F - Under roller diameter	10mm
B - Bearing width	12mm
e - Inlet diameter	14mm
R - Track roller radius	500mm
Bearing with/without cage	With
Radial clearance class	CN
Precision class	P0
Cr - Dynamic load rating	4.75 kN
C0r - Static load rating	5.4 kN
Track load capacity	1.38 kN
N - Grease lubrication limit speed	10000 tr/min
N - Oil lubrication limit speed	20000 tr/min
Tmin - Minimum operating temperature	-20 Deg C
Tmax - Maximum operating temperature	+120 Deg C
