SKU: NATR8-NTN

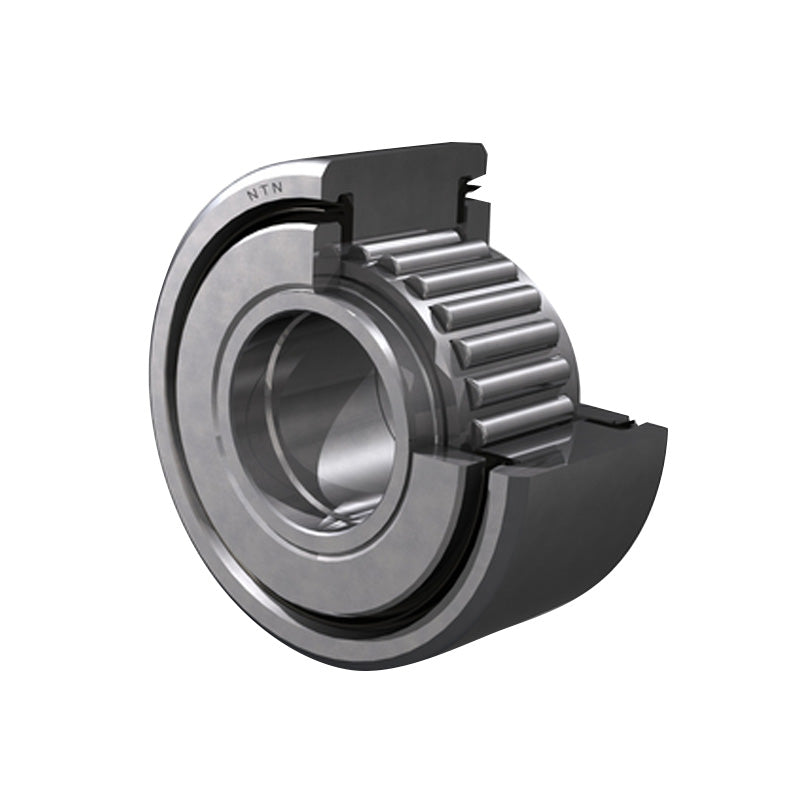

NTN NATR8 Yoke Type Track Roller with Inner Race 8x24x14mm

Name: NTN NATR8 Yoke Type Track Roller with Inner Race 8x24x14mm
Brand: NTN
SKU: NATR8-NTN
Price: 20.22 USD
Availability: InStock

$20.22 ex VAT

Sale Sold out

In stock

Price Break

3+ $13.55

4+ $12.78

9+ $12.63

19+ $12.48

49+ $12.33

99+ $12.18

499+ $11.42

999+ $11.26

1999+ $11.11

2999+ $10.96

4999+ $10.65

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

d - Inside diameter	8mm
D - Outside diameter	24mm
C - Outer ring width	14mm
F - Under roller diameter	12mm
B - Bearing width	15mm
e - Inlet diameter	19mm
R - Track roller radius	500mm
Bearing with/without cage	With
Radial clearance class	CN
Precision class	P0
Cr - Dynamic load rating	6.9 kN
C0r - Static load rating	7.7 kN
Track load capacity	1.9 kN
N - Grease lubrication limit speed	10000 tr/min
N - Oil lubrication limit speed	16000 tr/min
Tmin - Minimum operating temperature	-20 Deg C
Tmax - Maximum operating temperature	+120 Deg C
