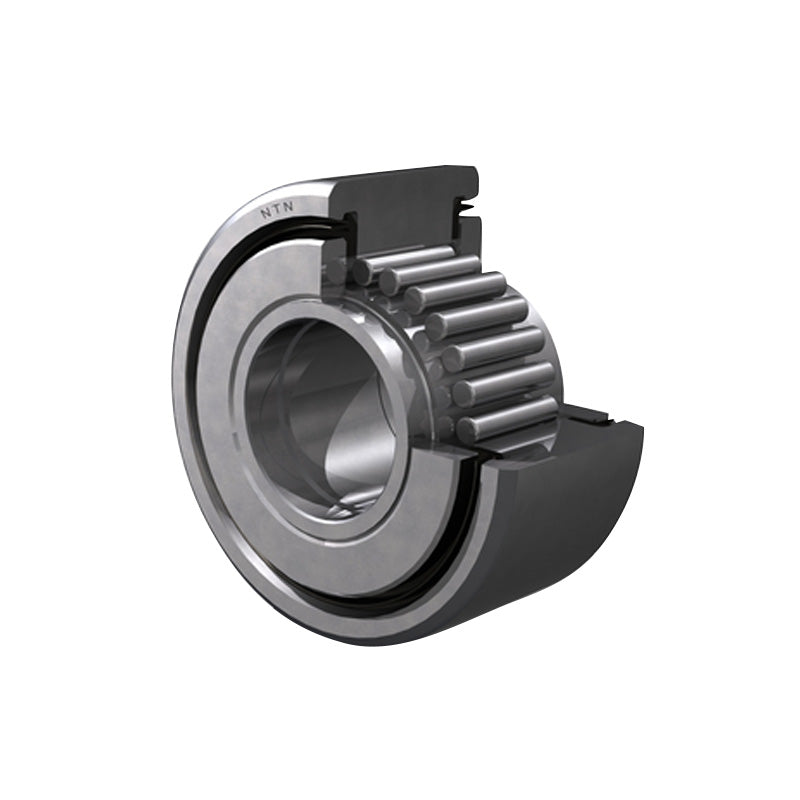

• NTN NATV10LL/3AS Yoke Type Track Roller with Inner Race 10x30x14mm
  • NTN
1 2

SKU: NATV10LL/3AS-NTN

NTN NATV10LL/3AS Yoke Type Track Roller with Inner Race 10x30x14mm

NTN NATV10LL/3AS Yoke Type Track Roller with Inner Race 10x30x14mm
$30.79 ex VAT
$30.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.62
4+ $19.46
9+ $19.23
19+ $19.00
49+ $18.77
99+ $18.54
499+ $17.38
999+ $17.15
1999+ $16.91
2999+ $16.68
4999+ $16.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
10mm
Outside Diameter:
30mm
Width:
14mm
Technical
d - Inside diameter 10mm
D - Outside diameter 30mm
C - Outer ring width 14mm
F - Under roller diameter 15mm
B - Bearing width 15mm
e - Inlet diameter 23mm
R - Track roller radius 500mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 12 kN
C0r - Static load rating 20.3 kN
Track load capacity 2.62 kN
N - Grease lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
