• NTN NATV10X/3AS Yoke Type Track Roller with Inner Race 10x30x14mm - Allow 2-3 Days
1 1

SKU: NATV10X/3AS-NTN

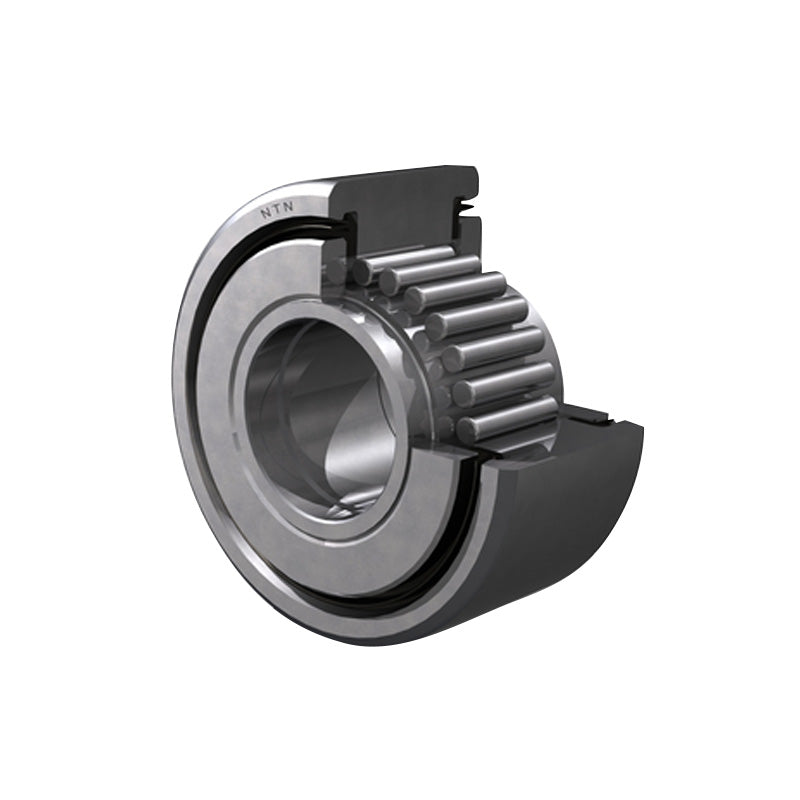

NTN NATV10X/3AS Yoke Type Track Roller with Inner Race 10x30x14mm - Allow 2-3 Days

NTN NATV10X/3AS Yoke Type Track Roller with Inner Race 10x30x14mm - Allow 2-3 Days
$29.44 ex VAT
$29.44 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.93
4+ $21.04
9+ $20.60
19+ $19.94
49+ $19.49
99+ $18.38
499+ $15.51
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation

Brand / Quality:
NTN - High Quality
Inside Diameter:
10mm
Outside Diameter:
30mm
Width:
14mm
Technical
d - Inside diameter 10mm
D - Outside diameter 30mm
C - Outer ring width 14mm
F - Under roller diameter 15mm
B - Bearing width 15mm
e - Inlet diameter 23mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 12 kN
C0r - Static load rating 20.3 kN
Track load capacity 7.7 kN
N - Grease lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
