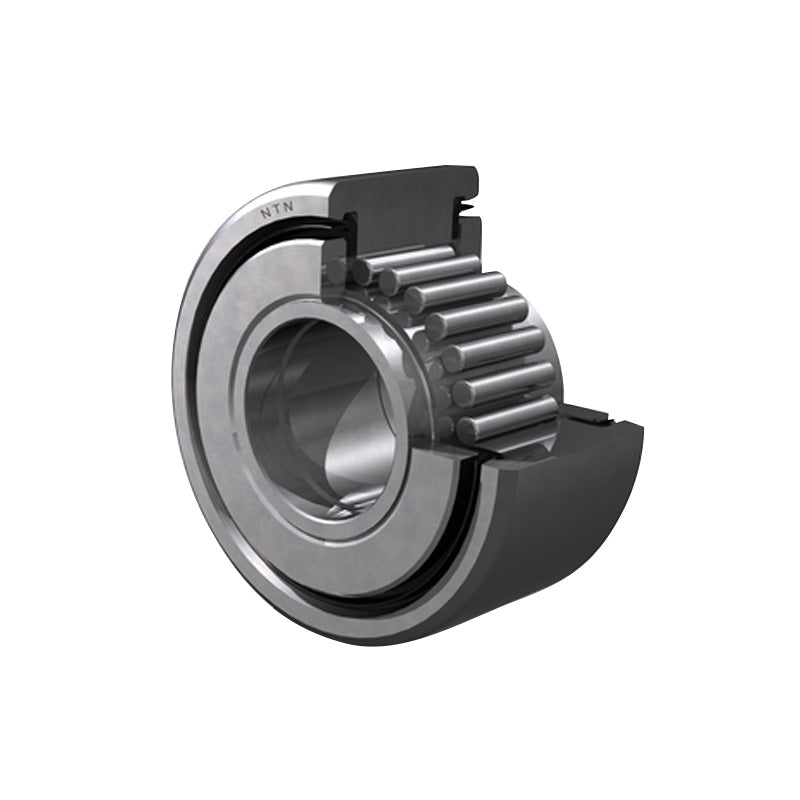

• NTN NATV12LL/3AS Yoke Type Track Roller with Inner Race 12x32x14mm
  • NTN
1 2

SKU: NATV12LL/3AS-NTN

NTN NATV12LL/3AS Yoke Type Track Roller with Inner Race 12x32x14mm

NTN NATV12LL/3AS Yoke Type Track Roller with Inner Race 12x32x14mm
$32.25 ex VAT
$32.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.60
4+ $20.39
9+ $20.14
19+ $19.90
49+ $19.66
99+ $19.42
499+ $18.20
999+ $17.96
1999+ $17.72
2999+ $17.47
4999+ $16.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
12mm
Outside Diameter:
32mm
Width:
14mm
Technical
d - Inside diameter 12mm
D - Outside diameter 32mm
C - Outer ring width 14mm
F - Under roller diameter 17mm
B - Bearing width 15mm
e - Inlet diameter 25mm
R - Track roller radius 500mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 13 kN
C0r - Static load rating 23 kN
Track load capacity 2.86 kN
N - Grease lubrication limit speed 6000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
