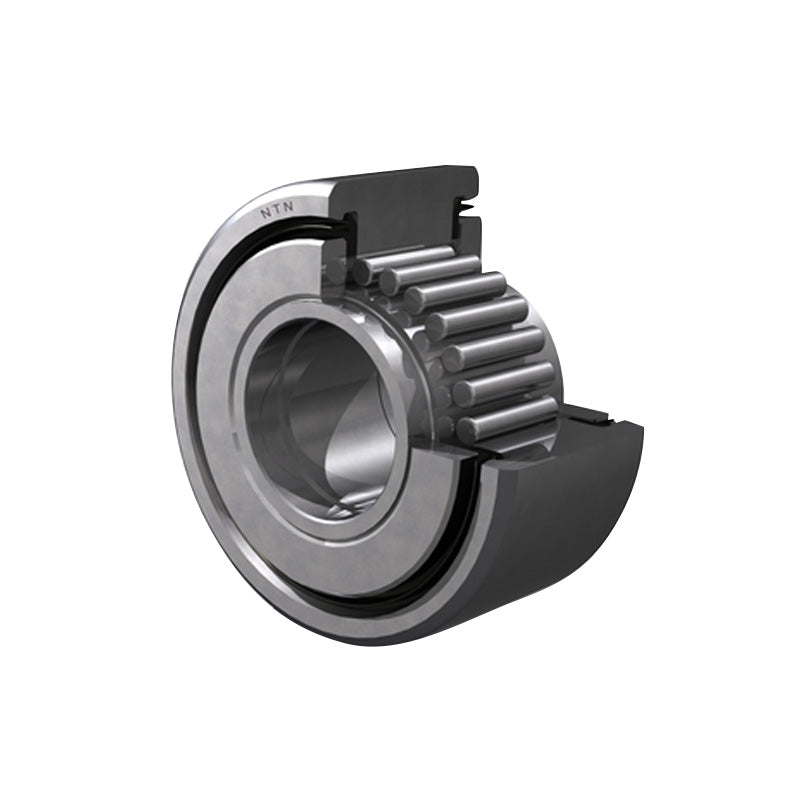

• NTN NATV15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm
  • NTN
1 2

SKU: NATV15LL/3AS-NTN

NTN NATV15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm

NTN NATV15LL/3AS Yoke Type Track Roller with Inner Race 15x35x18mm
$35.18 ex VAT
$35.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.57
4+ $22.24
9+ $21.98
19+ $21.71
49+ $21.45
99+ $21.18
499+ $19.86
999+ $19.60
1999+ $19.33
2999+ $19.07
4999+ $18.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Outside Diameter:
35mm
Width:
18mm
Technical
d - Inside diameter 15mm
D - Outside diameter 35mm
C - Outer ring width 18mm
F - Under roller diameter 20mm
B - Bearing width 19mm
e - Inlet diameter 27mm
R - Track roller radius 500mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 18.4 kN
C0r - Static load rating 38 kN
Track load capacity 3.2 kN
N - Grease lubrication limit speed 5000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
