SKU: NATV30/3AS-NTN

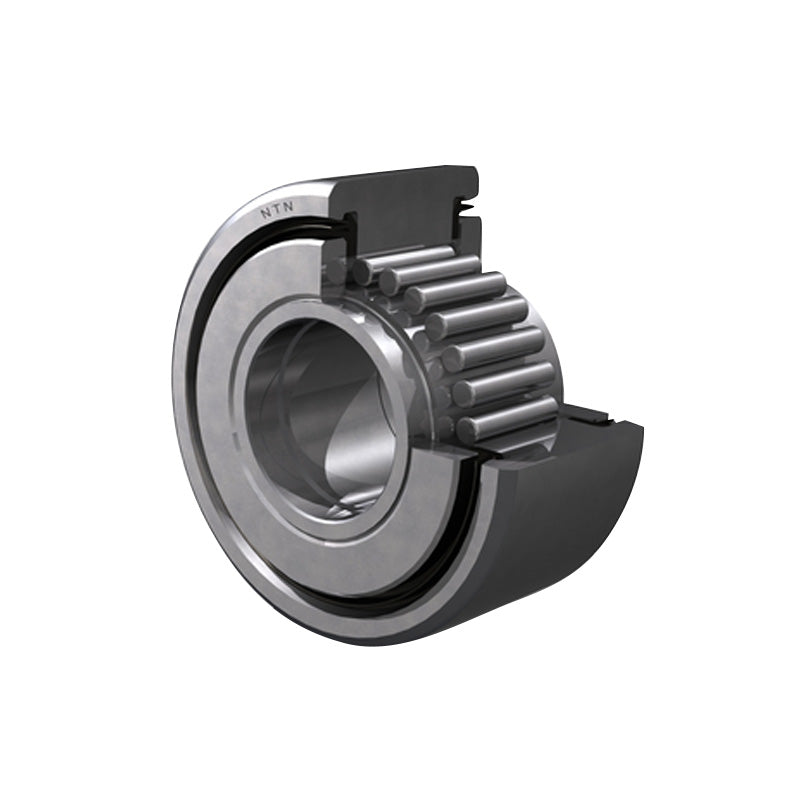

NTN NATV30/3AS Yoke Type Track Roller with Inner Race 30x62x28mm - Allow 2-3 Days
NTN NATV30/3AS Yoke Type Track Roller with Inner Race 30x62x28mm - Allow 2-3 Days
Regular price
$58.88
ex VAT
Regular price
Sale price
$58.88
ex VAT
In stock
Price Break
3+
$43.87
4+
$42.09
9+
$41.21
19+
$39.88
49+
$38.99
99+
$36.78
499+
$31.02
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
NTN NATV Type Track Rollers: These track rollers are premium-quality, double-sealed cam followers designed for smooth and reliable motion in demanding applications. Built with precision needle roller bearings and a thick-walled outer ring, these rollers provide exceptional load-carrying capacity, wear resistance, and long service life even under heavy or shock loads. The integrated design ensures easy installation and maintenance-free operation, making them ideal for use in automation equipment, conveyors, cam drives, and linear motion systems.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 28mm
Technical
Technical

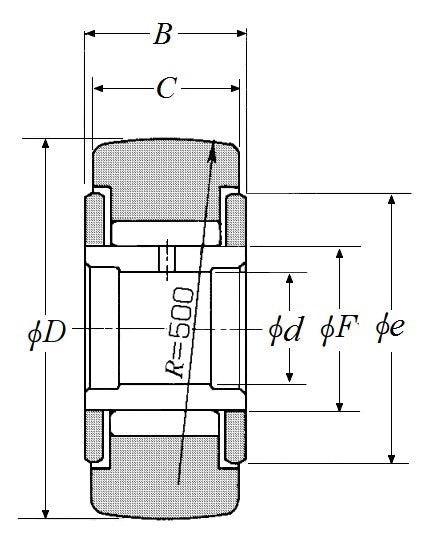

| d - Inside diameter | 30mm |
|---|---|
| D - Outside diameter | 62mm |
| C - Outer ring width | 28mm |
| F - Under roller diameter | 38mm |
| B - Bearing width | 29mm |
| e - Inlet diameter | 51mm |
| R - Track roller radius | 500mm |
| Bearing with/without cage | Without |
| Radial clearance class | CN |
| Precision class | P0 |
| Cr - Dynamic load rating | 47.5 kN |
| C0r - Static load rating | 115 kN |
| Track load capacity | 6.95 kN |
| N - Grease lubrication limit speed | 2600 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
