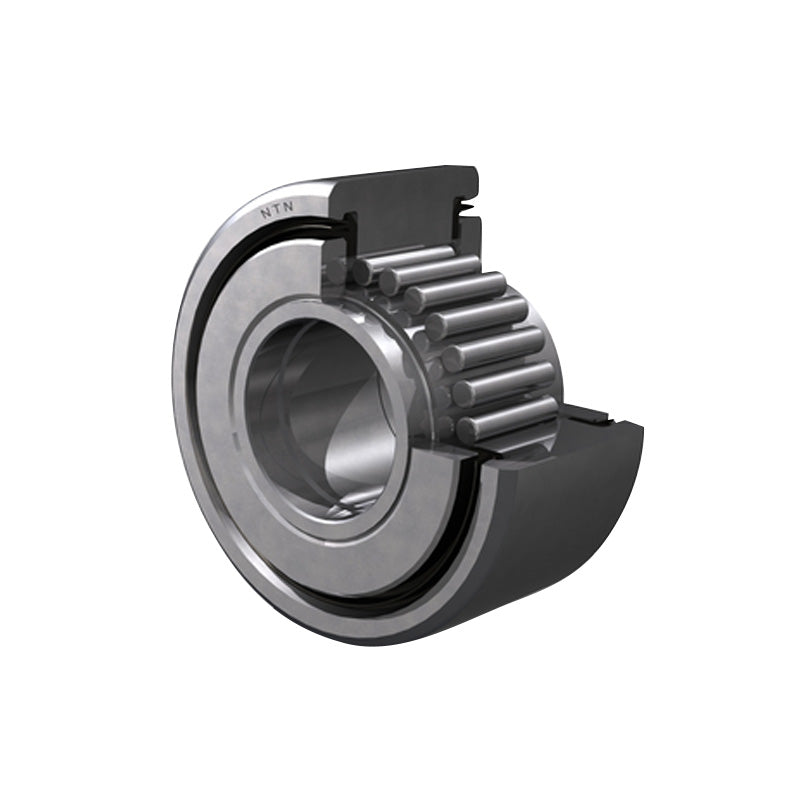

• NTN NATV8LL/3AS Yoke Type Track Roller with Inner Race 8x24x14mm
  • NTN
1 2

SKU: NATV8LL/3AS-NTN

NTN NATV8LL/3AS Yoke Type Track Roller with Inner Race 8x24x14mm

NTN NATV8LL/3AS Yoke Type Track Roller with Inner Race 8x24x14mm
$23.60 ex VAT
$23.60 ex VAT
Sale Sold out

In stock

Price Break
3+ $15.81
4+ $14.92
9+ $14.74
19+ $14.56
49+ $14.39
99+ $14.21
499+ $13.32
999+ $13.14
1999+ $12.96
2999+ $12.79
4999+ $12.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
8mm
Outside Diameter:
24mm
Width:
14mm
Technical
d - Inside diameter 8mm
D - Outside diameter 24mm
C - Outer ring width 14mm
F - Under roller diameter 12mm
B - Bearing width 15mm
e - Inlet diameter 19mm
R - Track roller radius 500mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 10.7 kN
C0r - Static load rating 16.2 kN
Track load capacity 1.9 kN
N - Grease lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
