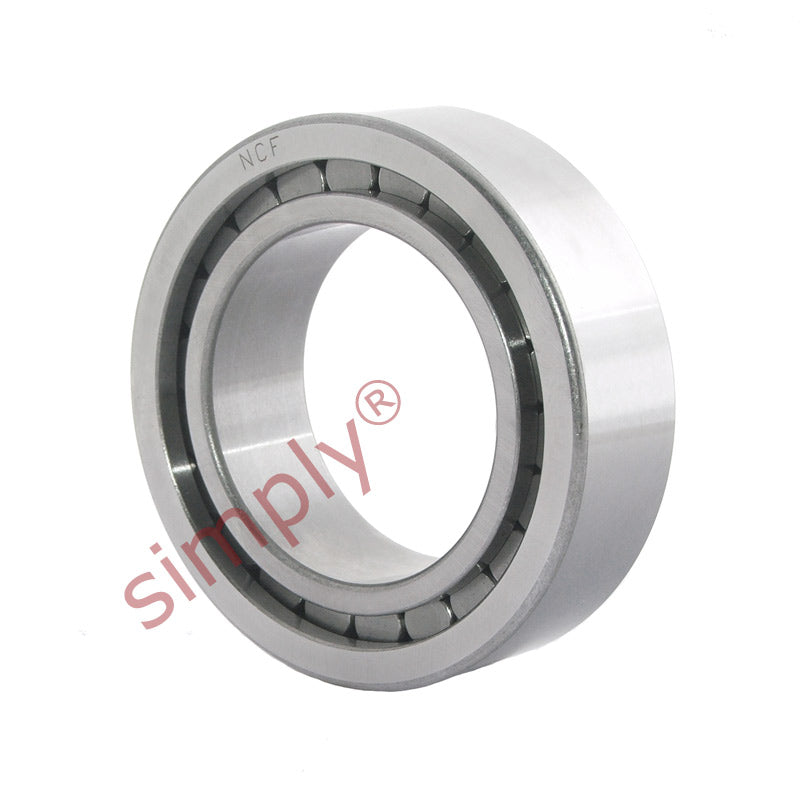

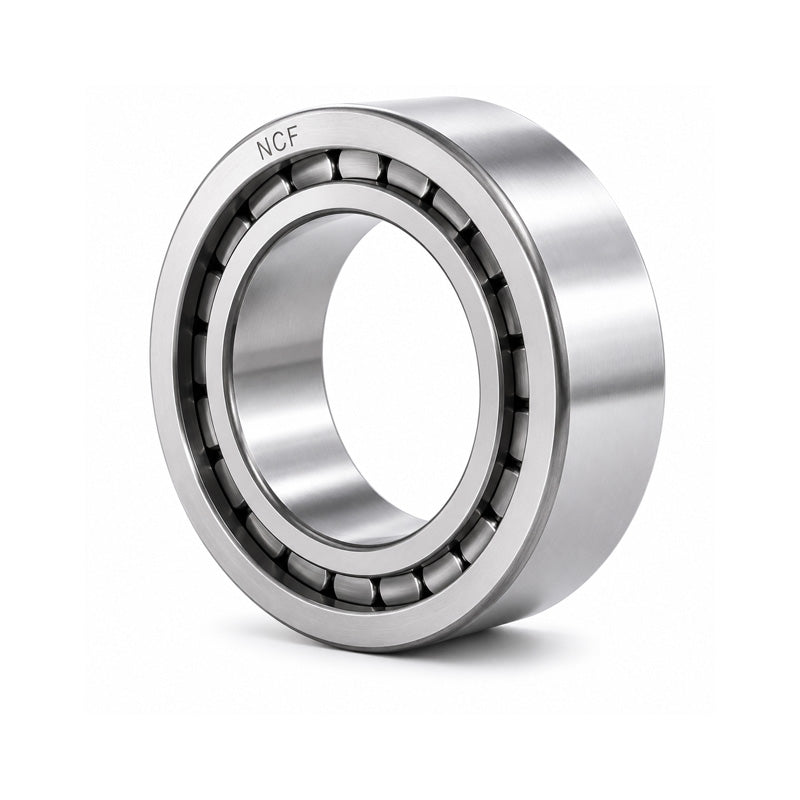

• NCF3004V Full Complement Cylindrical Roller Bearing 20x42x16mm
1 1

SKU: NCF.3004.CV.MB

NCF3004V Full Complement Cylindrical Roller Bearing 20x42x16mm

NCF3004V Full Complement Cylindrical Roller Bearing 20x42x16mm
$62.34 ex VAT
$62.34 ex VAT
Sale Sold out

Equivalent to: SL18 3004 NCF 3004V

In stock

Price Break
10+ $41.76
19+ $39.41
29+ $38.94
39+ $38.47
49+ $38.00
74+ $37.53
99+ $35.19
199+ $34.72
249+ $34.25
499+ $33.78
999+ $32.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing
Benefits:Tolerate axial load in one direction, none separable construction
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
20mm
Outside Diameter:
42mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 20mm
D 42mm
B 16mm
Weight 0.11kg
