• NCF3004CV Budget Single Row Cylindrical Roller Bearing 20x42x16mm
1 1

SKU: NCF3004CV-EU

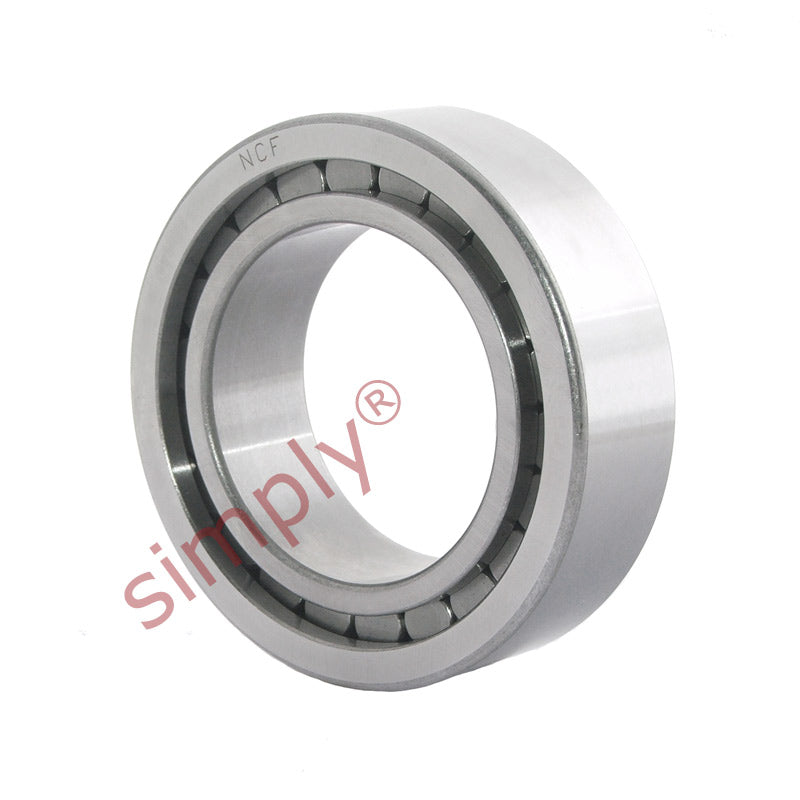

NCF3004CV Budget Single Row Cylindrical Roller Bearing 20x42x16mm

NCF3004CV Budget Single Row Cylindrical Roller Bearing 20x42x16mm
$30.24 ex VAT
$30.24 ex VAT
Sale Sold out

In stock

Price Break
10+ $20.26
19+ $19.12
29+ $18.89
39+ $18.66
49+ $18.43
74+ $18.21
99+ $17.07
199+ $16.84
249+ $16.61
499+ $16.39
999+ $15.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing
Benefits:Tolerate axial load in one direction, none separable construction
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
42mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 20mm
D 42mm
B 16mm
Dynamic load C 28.1 kN
Static load Co 28.5 kN
Fatigue load limit Pu 3.1 kN
Reference speed 8500 rpm
Limiting speed 10000 rpm
Weight 0.11 kg
d1 29mm
D1 33mm
E, F 36.8mm
r1r2 min 0.6mm
r3r4 min 0.6mm
s 1.5mm
da min 24mm
das 26.9mm
Da max 38mm
Db max 40mm
ra max 0.6mm
rb max 0.6mm
