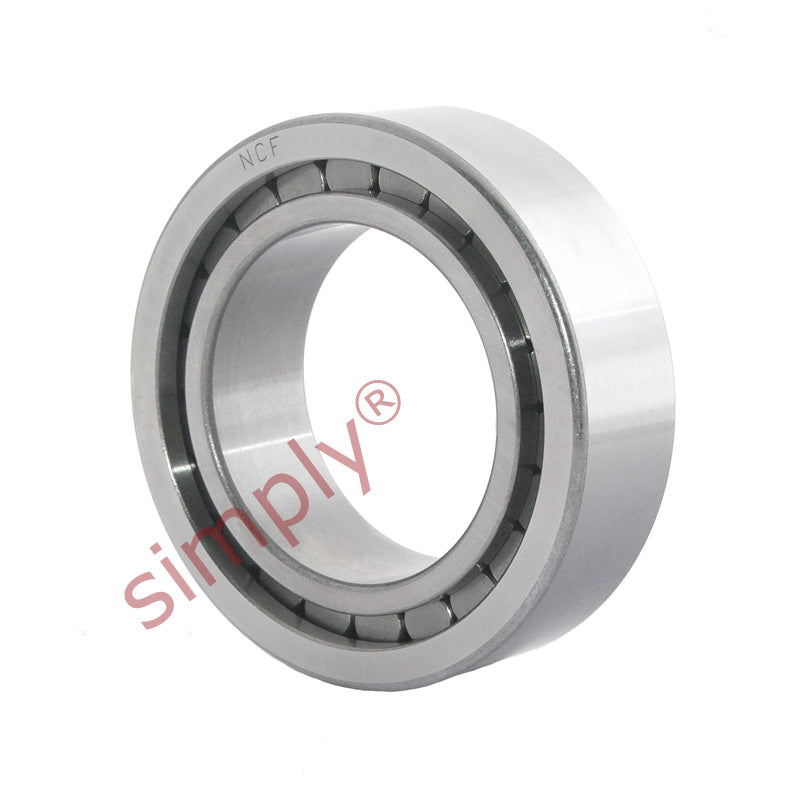

• NCF3005CV Budget Single Row Cylindrical Roller Bearing 25x47x16mm
1 1

SKU: NCF3005CV-EU

NCF3005CV Budget Single Row Cylindrical Roller Bearing 25x47x16mm

NCF3005CV Budget Single Row Cylindrical Roller Bearing 25x47x16mm
$48.03 ex VAT
$48.03 ex VAT
Sale Sold out

In stock

Price Break
10+ $32.17
19+ $30.36
29+ $30.00
39+ $29.64
49+ $29.28
74+ $28.92
99+ $27.11
199+ $26.75
249+ $26.39
499+ $26.03
999+ $25.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing
Benefits:Tolerate axial load in one direction, none separable construction
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
47mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 25mm
D 47mm
B 16mm
Dynamic load C 31.9 kN
Static load Co 35.5 kN
Fatigue load limit Pu 3.8 kN
Reference speed 7000 rpm
Limiting speed 9000 rpm
Weight 0.12 kg
d1 34mm
D1 39mm
E, F 42.5mm
r1r2 min 0.6mm
r3r4 min 0.6mm
s 1.5mm
da min 29mm
das 32.3mm
Da max 43mm
Db max 45mm
ra max 0.6mm
rb max 0.6mm
