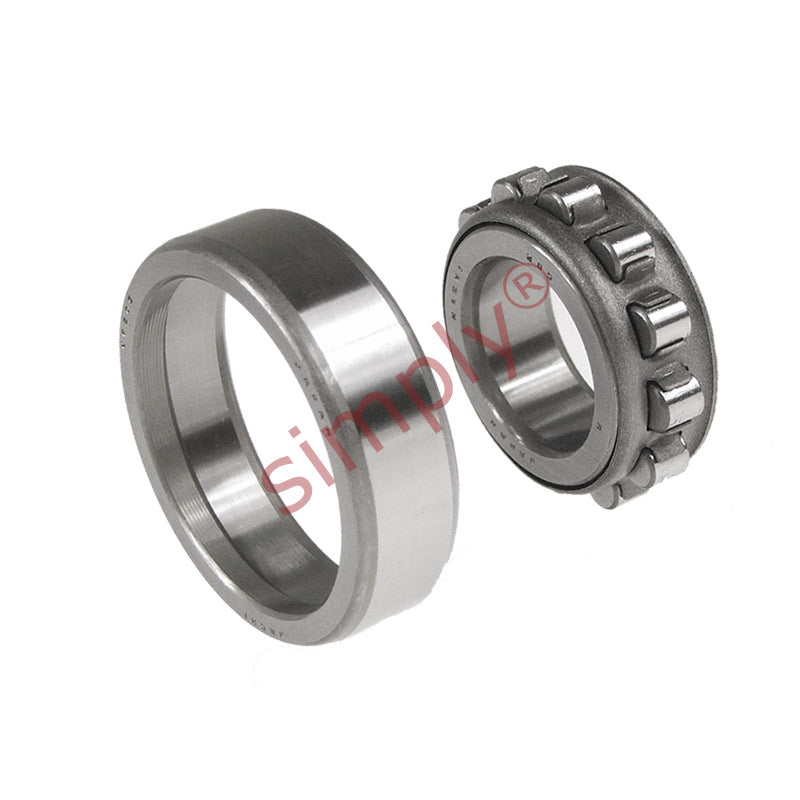

• NF203C3 Major Brand Cylindrical Roller Bearing 17x40x12mm
1 1

SKU: NF.203.C3.MB

NF203C3 Major Brand Cylindrical Roller Bearing 17x40x12mm

NF203C3 Major Brand Cylindrical Roller Bearing 17x40x12mm
$37.00 ex VAT
$37.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $24.78
19+ $23.39
29+ $23.11
39+ $22.83
49+ $22.56
74+ $22.28
99+ $20.88
199+ $20.61
249+ $20.33
499+ $20.05
999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NF and MRJA Series Single Row Cylindrical Roller Bearings: The outer ring of this type has one integral flange / shoulder, the inner raceway has a two flanges / shoulders around which the cage and rollers are assembled. The outer raceway shoulder permits the ease of assembly and limits axial location to one direction.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
17mm
Outside Diameter:
40mm
Width:
12mm
Seals / Shields:
None
Clearance:
C3
Technical
d 17mm
D 40mm
B 12mm
Ew 33.9mm
Fw 22.9mm
r1 0.6mm
0.3mm Dynamic Load
12600N Static Load
7950N Speed in Grease
16000rpm Speed in Oil
19000rpm da min
22mm db min
19mm db max
22mm dc
24mm Da max
35mm Db min
34mm Db max
34mm ra max
0.6mm ra1 max
0.3mm Weight
0.082kg N/A
