SKU: NJ203-CDX

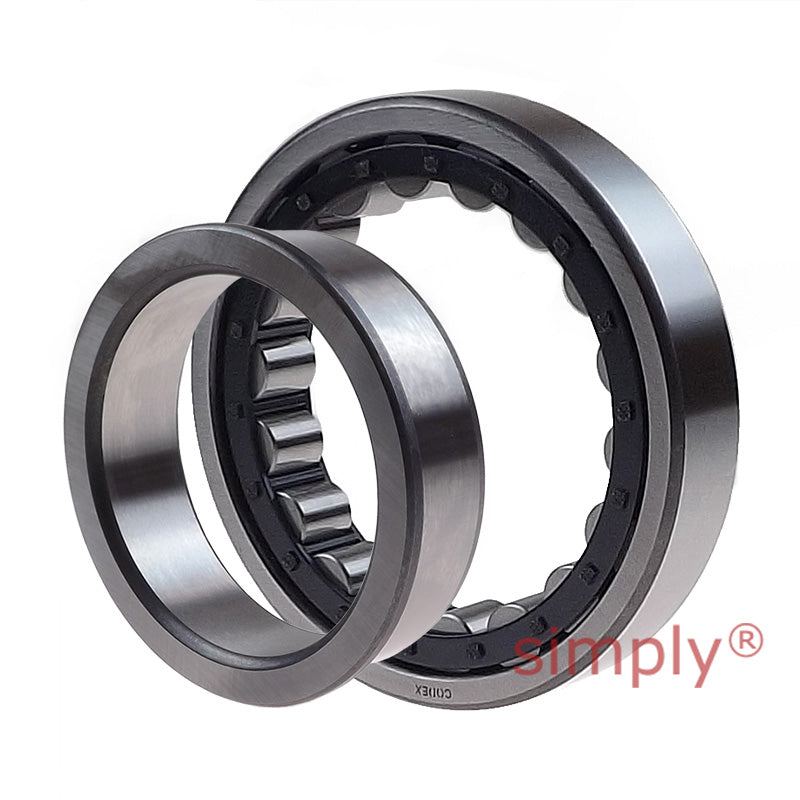

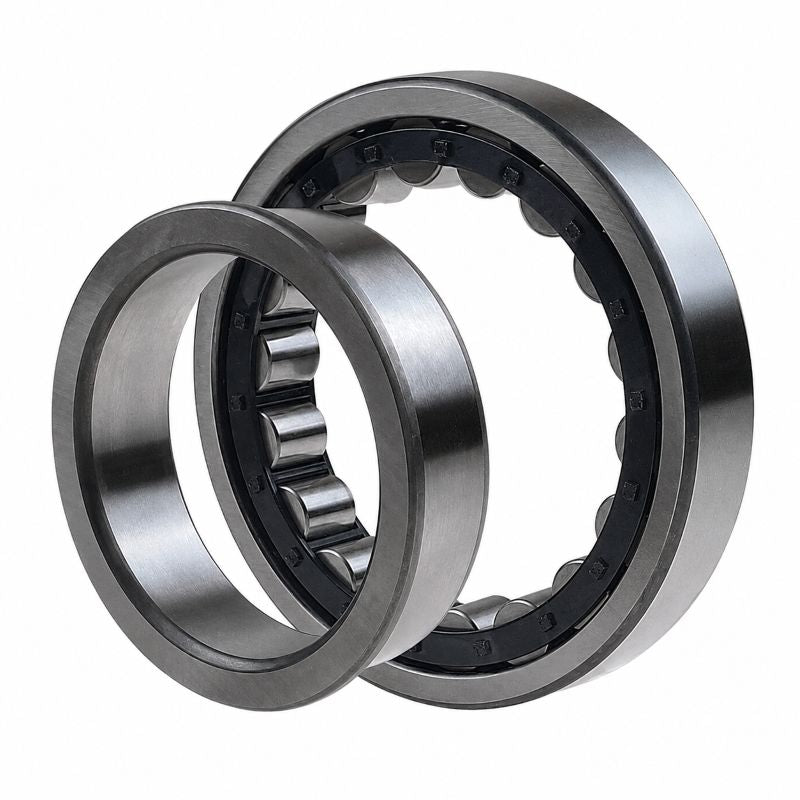

Codex NJ203 Single Row Cylindrical Roller Bearing 17x40x12mm

Name: Codex NJ203 Single Row Cylindrical Roller Bearing 17x40x12mm
Brand: Codex
SKU: NJ203-CDX
Price: 25.82 USD
Availability: InStock

$25.82 ex VAT

Sale Sold out

In stock

Price Break

10+ $17.29

19+ $16.32

29+ $16.12

39+ $15.93

49+ $15.74

74+ $15.54

99+ $14.57

199+ $14.38

249+ $14.18

499+ $13.99

999+ $13.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 17mm
Outside Diameter:: 40mm
Width:: 12mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	17mm
D	40mm
B	12mm
Dynamic load C	17.2 kN
Static load Co	14.3 kN
Fatigue load limit Pu	1.73 kN
Reference speed	19000 rpm
Limiting speed	22000 rpm
Weight	0.07 kg
Cage options	ML
d1	25mm
D1	32.4mm
F, E	22.1mm
r1r2 min	0.6mm
r3r4 min	0.3mm
s	1mm
da min	21mm
da max	21mm
db min	27mm
Da max	35.8mm
ra max	0.6mm
rb max	0.3mm
kr	0.15
