SKU: NJ205.J

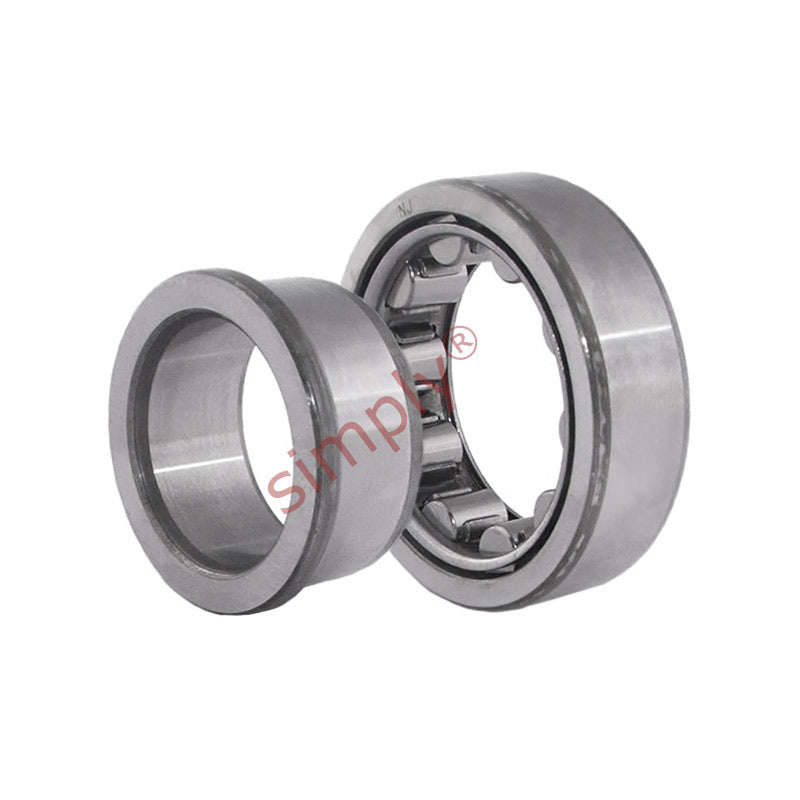

Koyo NJ205J Steel Caged Single Row Cylindrical Roller Bearing 25x52x15mm

Name: Koyo NJ205J Steel Caged Single Row Cylindrical Roller Bearing 25x52x15mm
Brand: Koyo
SKU: NJ205.J
Price: 54.65 USD
Availability: InStock

$54.65 ex VAT

Sale Sold out

In stock

Price Break

10+ $36.60

19+ $34.55

29+ $34.13

39+ $33.72

49+ $33.31

74+ $32.90

99+ $30.84

199+ $30.43

249+ $30.02

499+ $29.61

999+ $28.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Koyo - High Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	25mm
D	52mm
B	15mm
Dynamic load C	28.6 kN
Static load Co	27 kN
Fatigue load limit Pu	3.35 kN
Reference speed	14000 rpm
Limiting speed	16000 rpm
Weight	0.14 kg
Cage options	J.ML
d1	34.7mm
D1	43.8mm
F, E	31.5mm
r1r2 min	1mm
r3r4 min	0.6mm
s	1.3mm
da min	30mm
da max	30mm
db min	36mm
Da max	46.4mm
ra max	1mm
rb max	0.6mm
kr	0.15
Angle ring	HJ205EC
Angle ring weight	0.014kg
B1	3mm
B2	6mm
