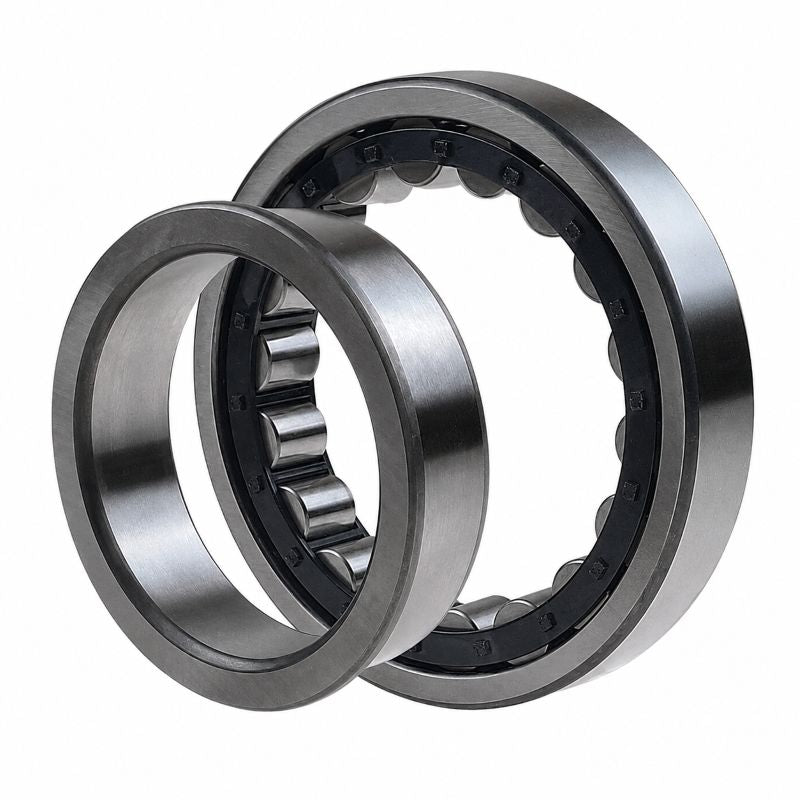

Codex NJ208 Single Row Cylindrical Roller Bearing 40x80x18mm

Name: Codex NJ208 Single Row Cylindrical Roller Bearing 40x80x18mm
Brand: Codex
SKU: NJ208-CDX
Price: 50.15 USD
Availability: InStock

$50.15 ex VAT

Sale Sold out

In stock

Price Break

10+ $33.59

19+ $31.70

29+ $31.32

39+ $30.95

49+ $30.57

74+ $30.19

99+ $28.30

199+ $27.93

249+ $27.55

499+ $27.17

999+ $26.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 40mm
Outside Diameter:: 80mm
Width:: 18mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	40mm
D	80mm
B	18mm
Dynamic load C	62 kN
Static load Co	53 kN
Fatigue load limit Pu	6.7 kN
Reference speed	9500 rpm
Limiting speed	11000 rpm
Weight	0.39 kg
Cage options	J.M.ML
d1	54mm
D1	67.9mm
F, E	49.5mm
r1r2 min	1.1mm
r3r4 min	1.1mm
s	1.4mm
da min	47mm
da max	48mm
db min	56mm
Da max	73mm
ra max	1mm
rb max	1mm
kr	0.15
Angle ring	HJ208EC
Angle ring weight	0.047kg
B1	5mm
B2	8.5mm
