SKU: NJ208-EU

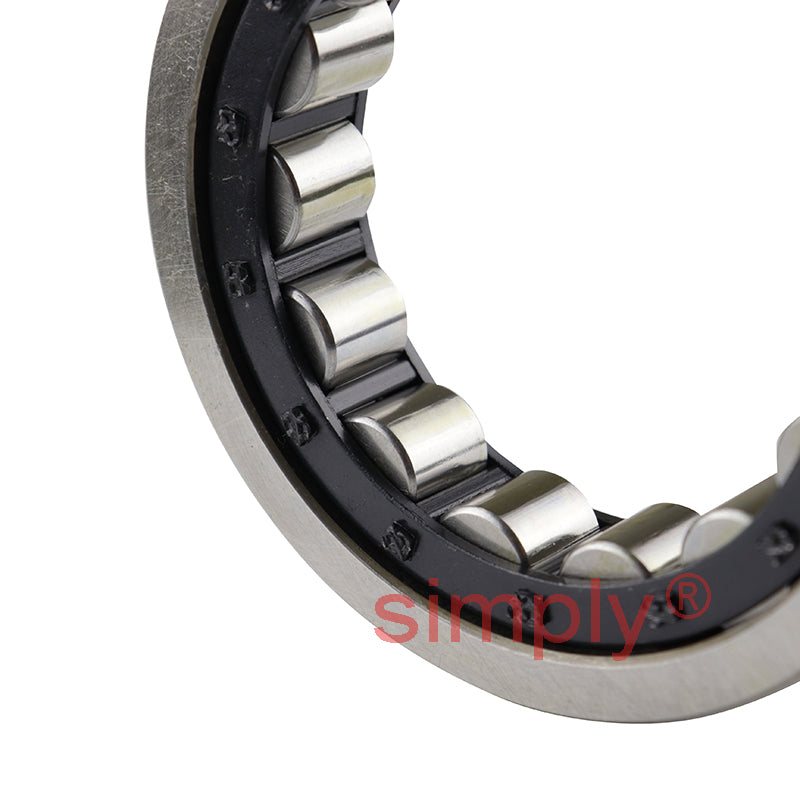

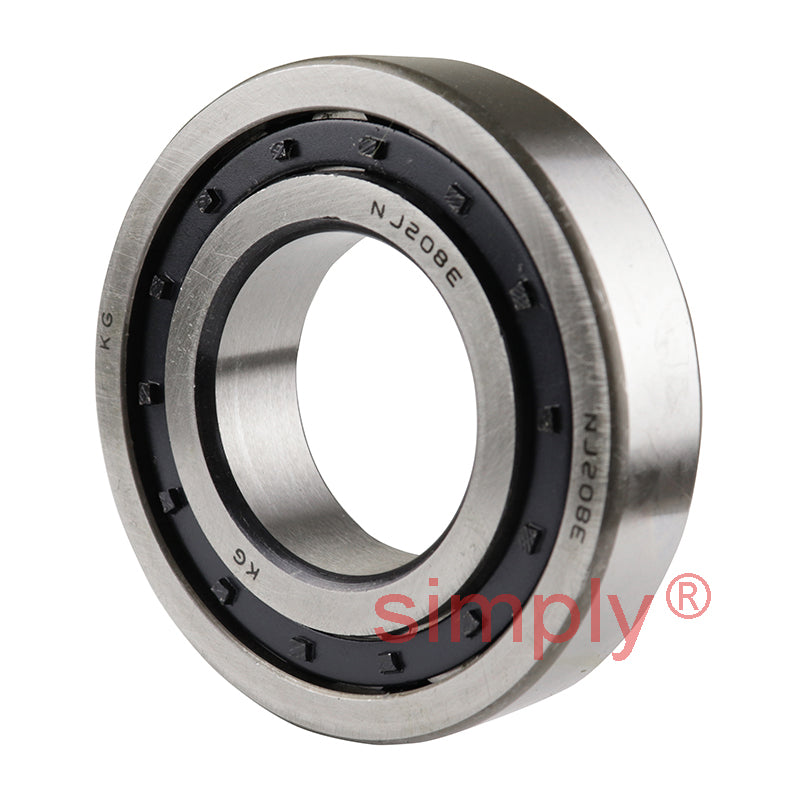

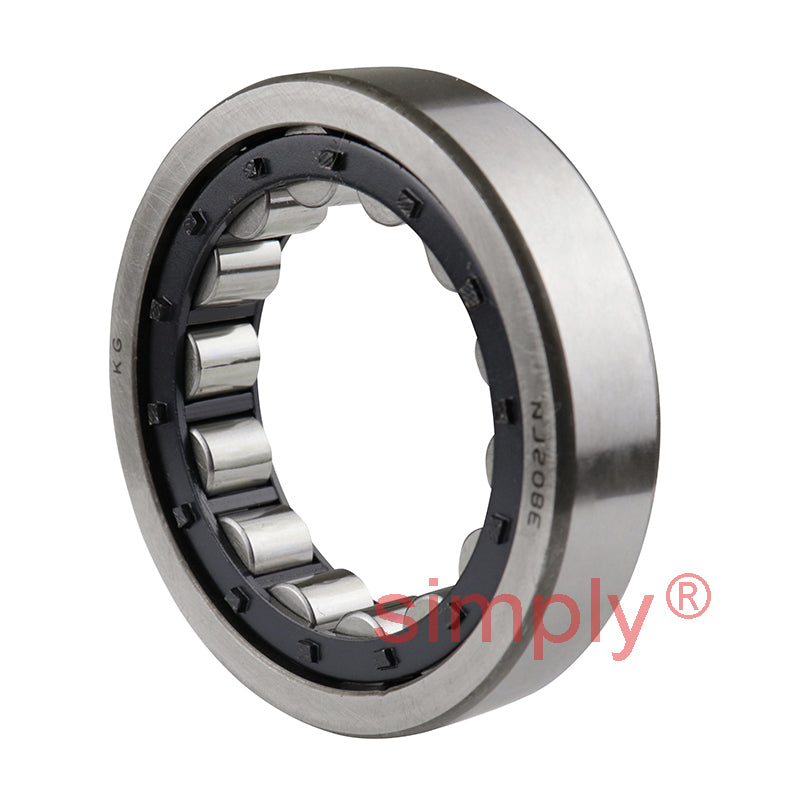

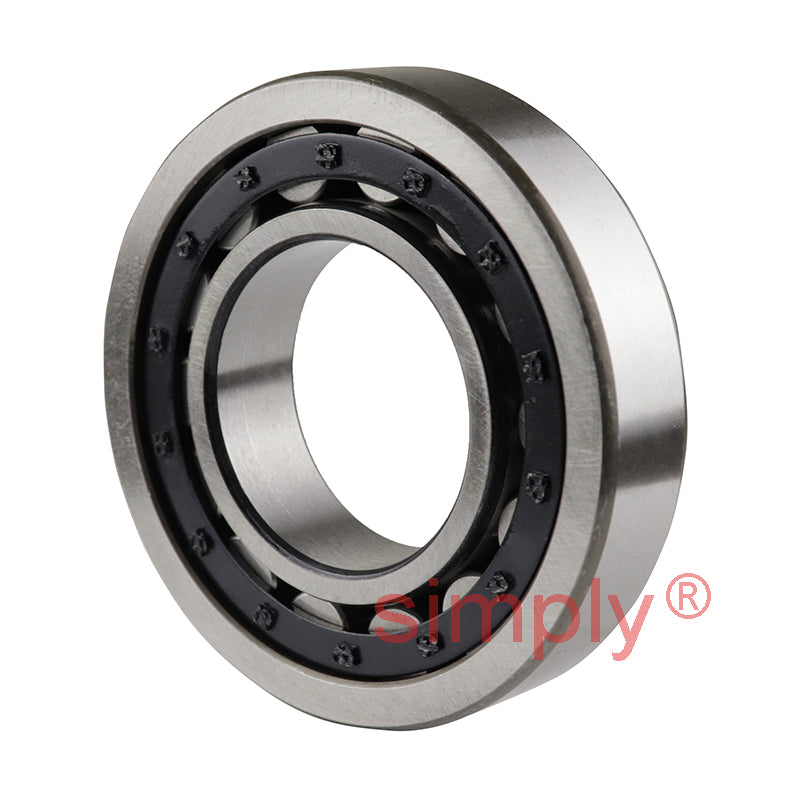

NJ208 Budget Single Row Cylindrical Roller Bearing 40x80x18mm

NJ208 Budget Single Row Cylindrical Roller Bearing 40x80x18mm
$39.53 ex VAT
$39.53 ex VAT
Sale Sold out

In stock

Price Break
10+ $26.48
19+ $24.99
29+ $24.69
39+ $24.40
49+ $24.10
74+ $23.80
99+ $22.31
199+ $22.02
249+ $21.72
499+ $21.42
999+ $20.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 40mm
D 80mm
B 18mm
Dynamic load C 62 kN
Static load Co 53 kN
Fatigue load limit Pu 6.7 kN
Reference speed 9500 rpm
Limiting speed 11000 rpm
Weight 0.39 kg
Cage options J.M.ML
d1 54mm
D1 67.9mm
F, E 49.5mm
r1r2 min 1.1mm
r3r4 min 1.1mm
s 1.4mm
da min 47mm
da max 48mm
db min 56mm
Da max 73mm
ra max 1mm
rb max 1mm
kr 0.15

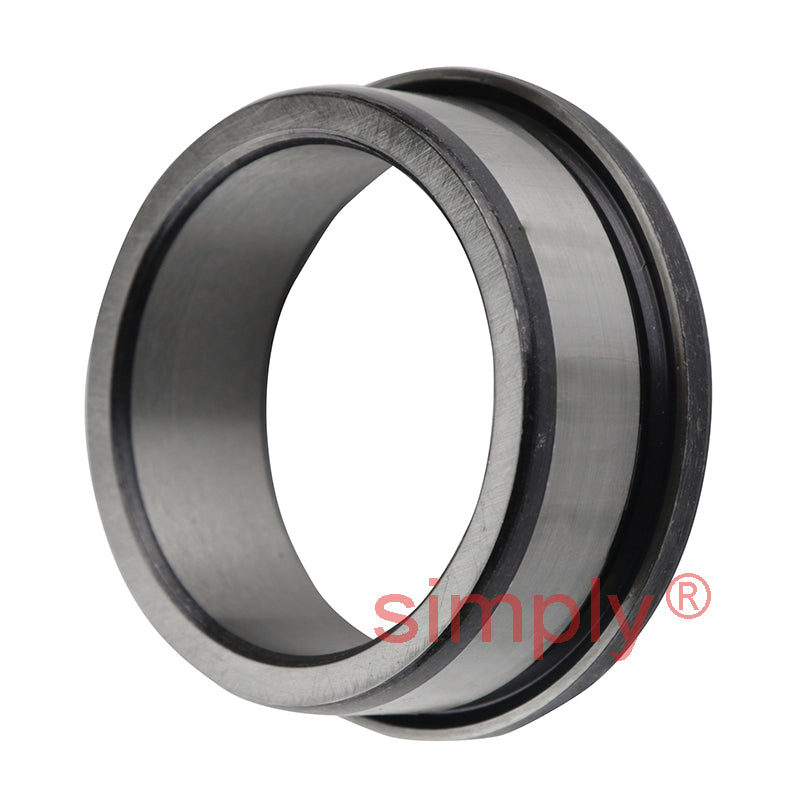

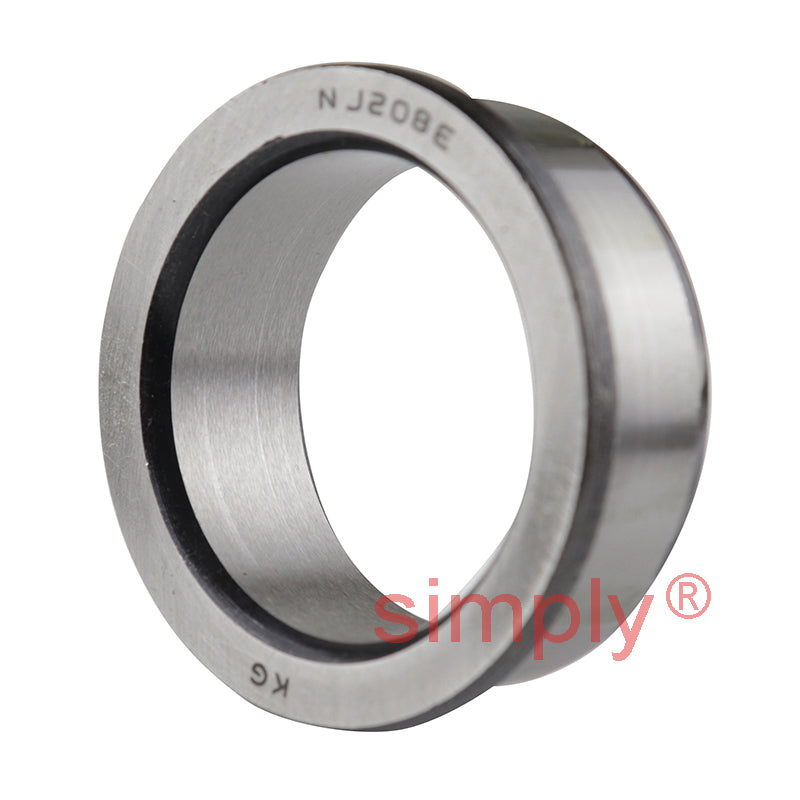

Angle ring HJ208EC
Angle ring weight 0.047kg
B1 5mm
B2 8.5mm
