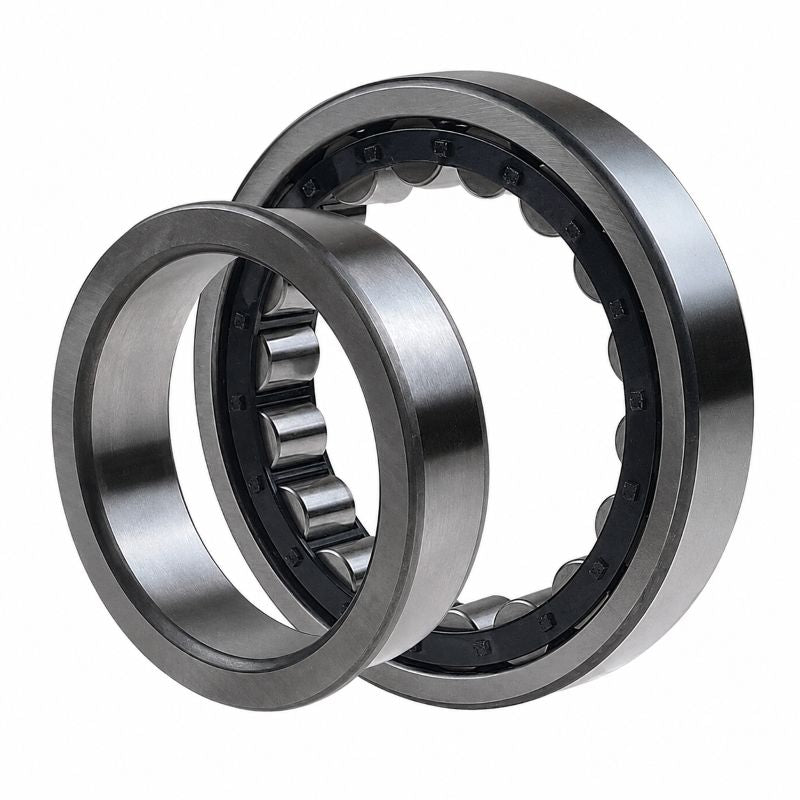

Codex NJ209 Single Row Cylindrical Roller Bearing 45x85x19mm

Name: Codex NJ209 Single Row Cylindrical Roller Bearing 45x85x19mm
Brand: Codex
SKU: NJ209-CDX
Price: 49.99 USD
Availability: InStock

$49.99 ex VAT

Sale Sold out

In stock

Price Break

10+ $33.48

19+ $31.60

29+ $31.22

39+ $30.85

49+ $30.47

74+ $30.10

99+ $28.21

199+ $27.84

249+ $27.46

499+ $27.09

999+ $26.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 45mm
Outside Diameter:: 85mm
Width:: 19mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	45mm
D	85mm
B	19mm
Dynamic load C	69.5 kN
Static load Co	64 kN
Fatigue load limit Pu	8.15 kN
Reference speed	9000 rpm
Limiting speed	9500 rpm
Weight	0.44 kg
Cage options	J.M.ML
d1	59mm
D1	73mm
F, E	54.5mm
r1r2 min	1.1mm
r3r4 min	1.1mm
s	1.2mm
da min	52mm
da max	53mm
db min	61mm
Da max	78mm
ra max	1mm
rb max	1mm
kr	0.15
Angle ring	HJ209EC
Angle ring weight	0.052kg
B1	5mm
B2	8.5mm
