SKU: NJ211-CDX

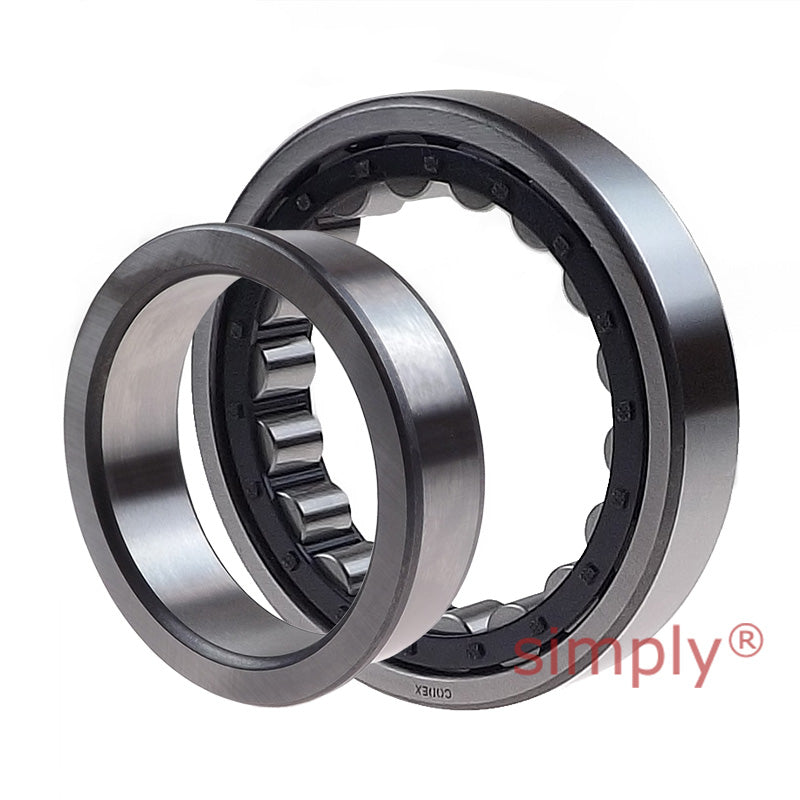

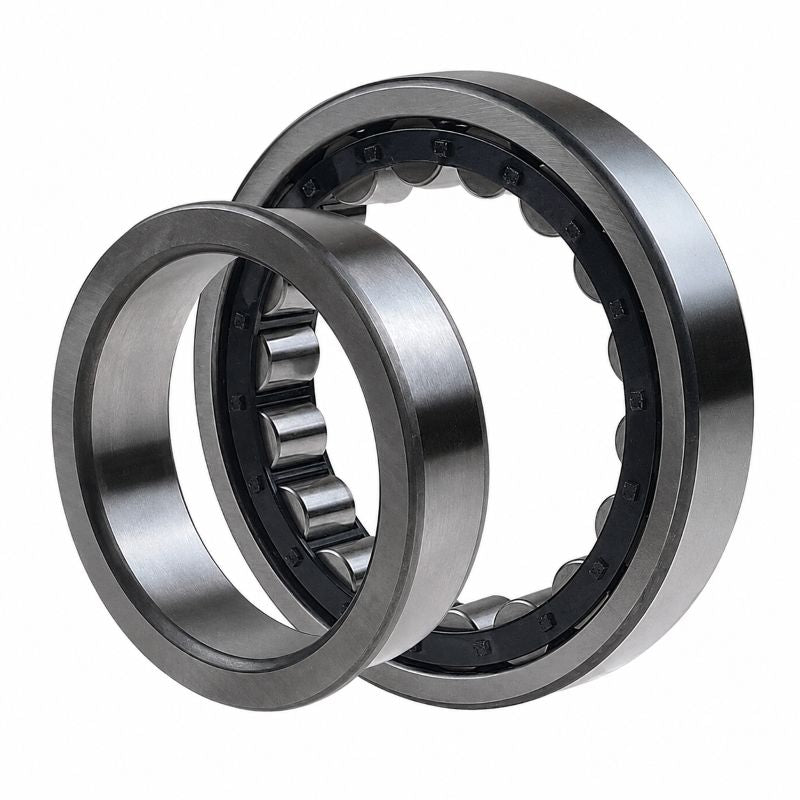

Codex NJ211 Single Row Cylindrical Roller Bearing 55x100x21mm

Name: Codex NJ211 Single Row Cylindrical Roller Bearing 55x100x21mm
Brand: Codex
SKU: NJ211-CDX
Price: 65.86 USD
Availability: InStock

$65.86 ex VAT

Sale Sold out

In stock

Price Break

10+ $44.11

19+ $41.64

29+ $41.14

39+ $40.64

49+ $40.15

74+ $39.65

99+ $37.17

199+ $36.68

249+ $36.18

499+ $35.69

999+ $34.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 55mm
Outside Diameter:: 100mm
Width:: 21mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	55mm
D	100mm
B	21mm
Dynamic load C	96.5 kN
Static load Co	95 kN
Fatigue load limit Pu	12.2 kN
Reference speed	7500 rpm
Limiting speed	8000 rpm
Weight	0.67 kg
Cage options	J.M.ML
d1	70.8mm
D1	86.3mm
F, E	66mm
r1r2 min	1.5mm
r3r4 min	1.1mm
s	1mm
da min	64mm
da max	64mm
db min	73mm
Da max	91mm
ra max	1.5mm
rb max	1mm
kr	0.15
Angle ring	HJ211EC
Angle ring weight	0.083kg
B1	6mm
B2	9.5mm
