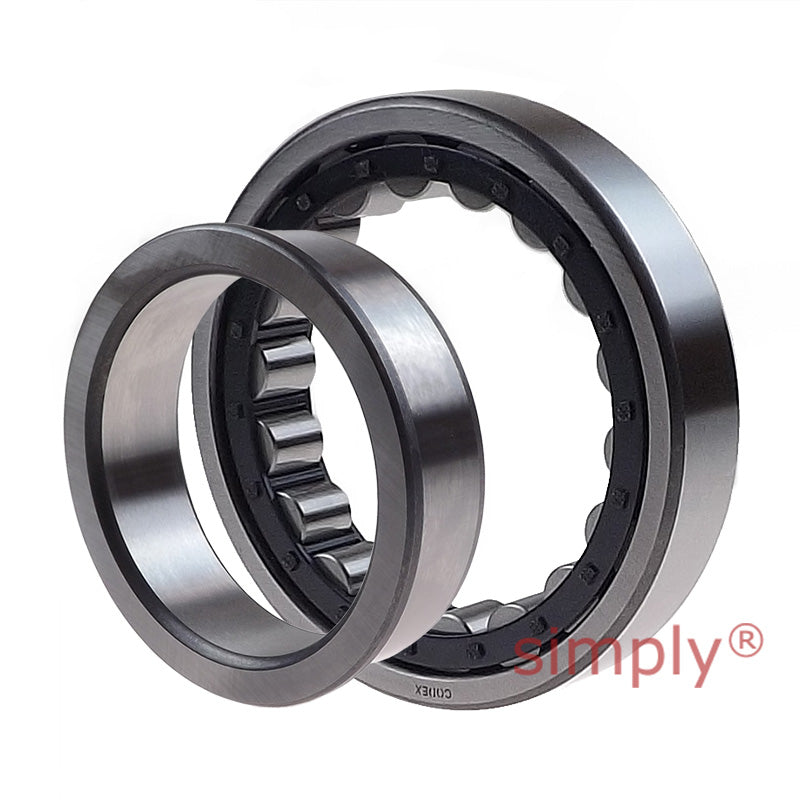

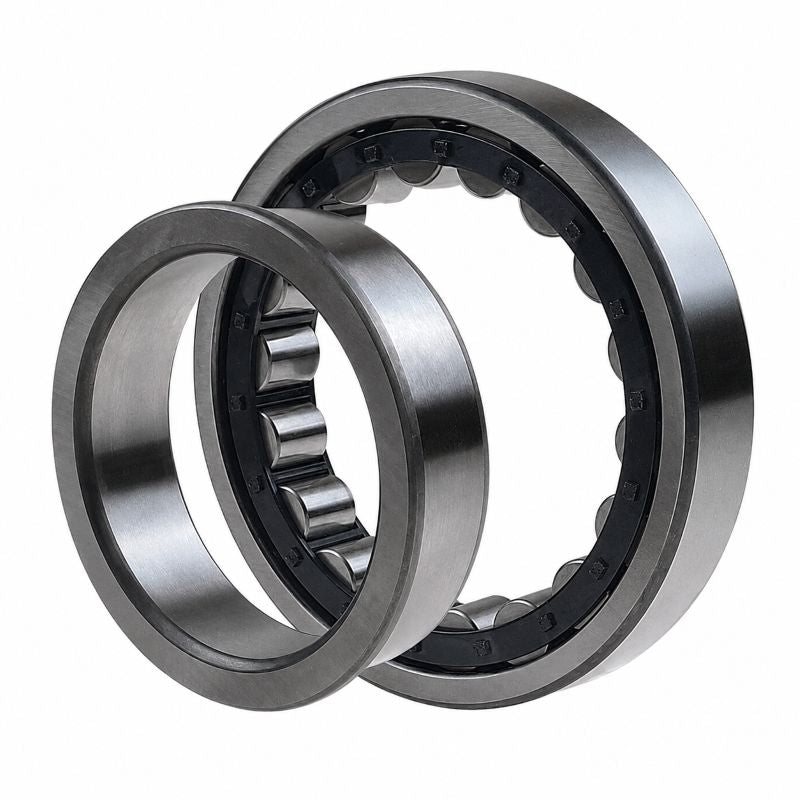

• Codex NJ212 Single Row Cylindrical Roller Bearing 60x110x22mm
  • Codex
1 2

SKU: NJ212-CDX

Codex NJ212 Single Row Cylindrical Roller Bearing 60x110x22mm

Codex NJ212 Single Row Cylindrical Roller Bearing 60x110x22mm
$73.86 ex VAT
$73.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $49.47
19+ $46.69
29+ $46.14
39+ $45.58
49+ $45.03
74+ $44.47
99+ $41.69
199+ $41.13
249+ $40.58
499+ $40.02
999+ $38.91

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
22mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 60mm
D 110mm
B 22mm
Dynamic load C 108 kN
Static load Co 102 kN
Fatigue load limit Pu 13.4 kN
Reference speed 6700 rpm
Limiting speed 7500 rpm
Weight 0.83 kg
Cage options J.M.ML
d1 77.5mm
D1 95.7mm
F, E 72mm
r1r2 min 1.5mm
r3r4 min 1.5mm
s 1.4mm
da min 69mm
da max 70mm
db min 80mm
Da max 101mm
ra max 1.5mm
rb max 1.5mm
kr 0.15
Angle ring HJ212EC
Angle ring weight 0.1kg
B1 6mm
B2 10mm
