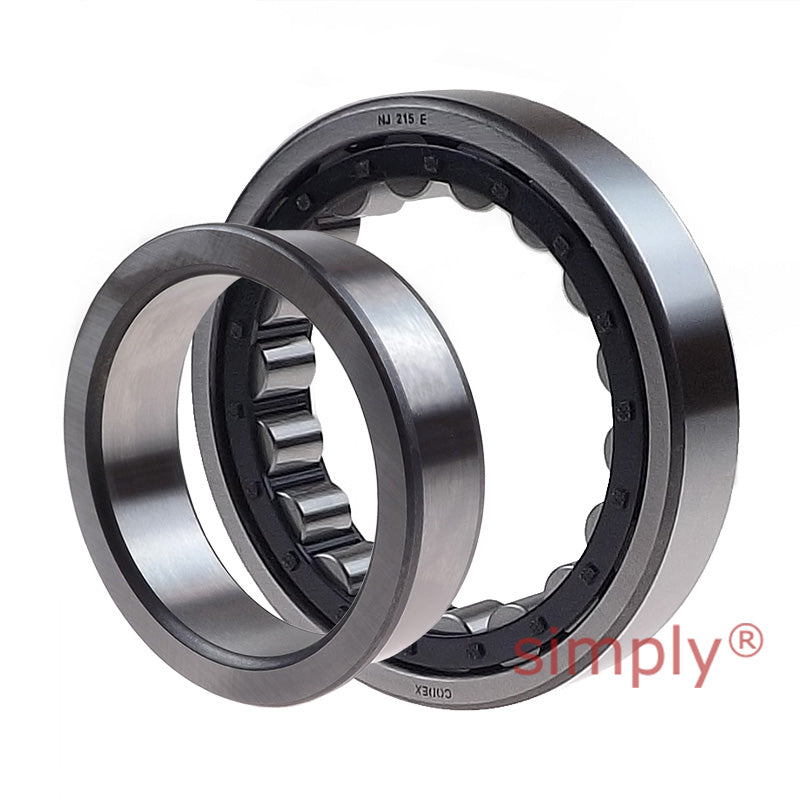

• Codex NJ215 Single Row Cylindrical Roller Bearing 75x130x25mm
  • Codex
1 2

SKU: NJ215-CDX

Codex NJ215 Single Row Cylindrical Roller Bearing 75x130x25mm

Codex NJ215 Single Row Cylindrical Roller Bearing 75x130x25mm
$133.32 ex VAT
$133.32 ex VAT
Sale Sold out

In stock

Price Break
10+ $89.30
19+ $84.29
29+ $83.28
39+ $82.28
49+ $81.28
74+ $80.27
99+ $75.26
199+ $74.25
249+ $73.25
499+ $72.25
999+ $70.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Inside Diameter:
75mm
Outside Diameter:
130mm
Width:
25mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 75mm
D 130mm
B 25mm
Dynamic load C 150 kN
Static load Co 156 kN
Fatigue load limit Pu 20.4 kN
Reference speed 5600 rpm
Limiting speed 6000 rpm
Weight 1.3 kg
Cage options J.M.ML
d1 94.3mm
D1 114mm
F, E 88.5mm
r1r2 min 1.5mm
r3r4 min 1.5mm
s 1.2mm
da min 84mm
da max 86mm
db min 97mm
Da max 121mm
ra max 1.5mm
rb max 1.5mm
kr 0.15
Angle ring HJ215EC
Angle ring weight 0.16kg
B1 7mm
B2 11mm
