SKU: NJ216-CDX

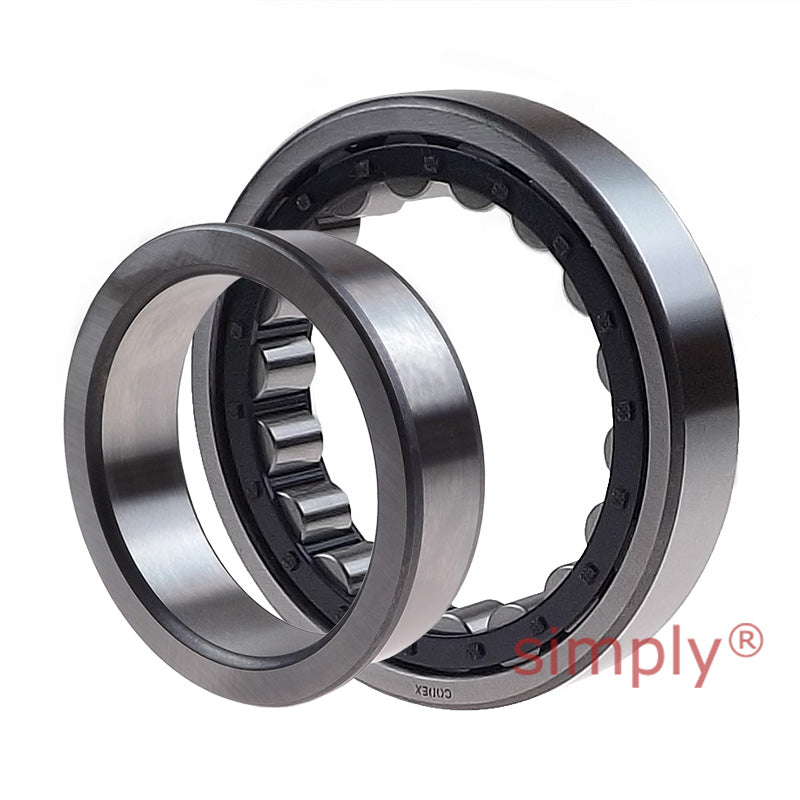

Codex NJ216 Single Row Cylindrical Roller Bearing 80x140x26mm

Name: Codex NJ216 Single Row Cylindrical Roller Bearing 80x140x26mm
Brand: Codex
SKU: NJ216-CDX
Price: 132.52 USD
Availability: InStock

$132.52 ex VAT

Sale Sold out

In stock

Price Break

10+ $88.76

19+ $83.78

29+ $82.78

39+ $81.78

49+ $80.79

74+ $79.79

99+ $74.80

199+ $73.80

249+ $72.81

499+ $71.81

999+ $69.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 80mm
Outside Diameter:: 140mm
Width:: 26mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	80mm
D	140mm
B	26mm
Dynamic load C	160 kN
Static load Co	166 kN
Fatigue load limit Pu	21.2 kN
Reference speed	5300 rpm
Limiting speed	5600 rpm
Weight	1.6 kg
Cage options	J.M.ML
d1	101mm
D1	123mm
F, E	95.3mm
r1r2 min	2mm
r3r4 min	2mm
s	1.4mm
da min	91mm
da max	93mm
db min	104mm
Da max	129mm
ra max	2mm
rb max	2mm
kr	0.15
Angle ring	HJ216EC
Angle ring weight	0.21kg
B1	8mm
B2	12.5mm
