SKU: NJ216ECP-SKF

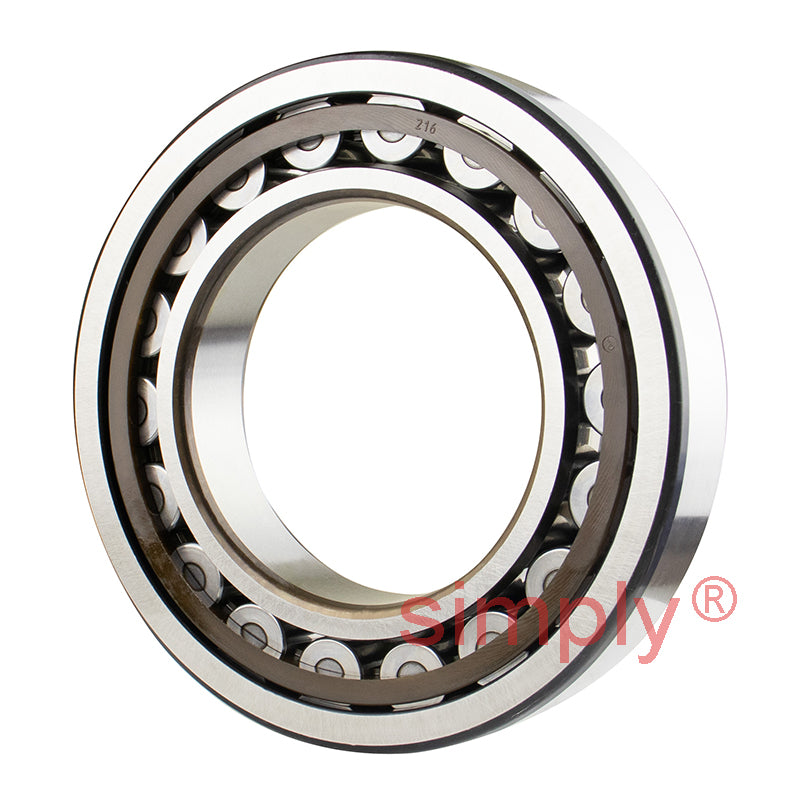

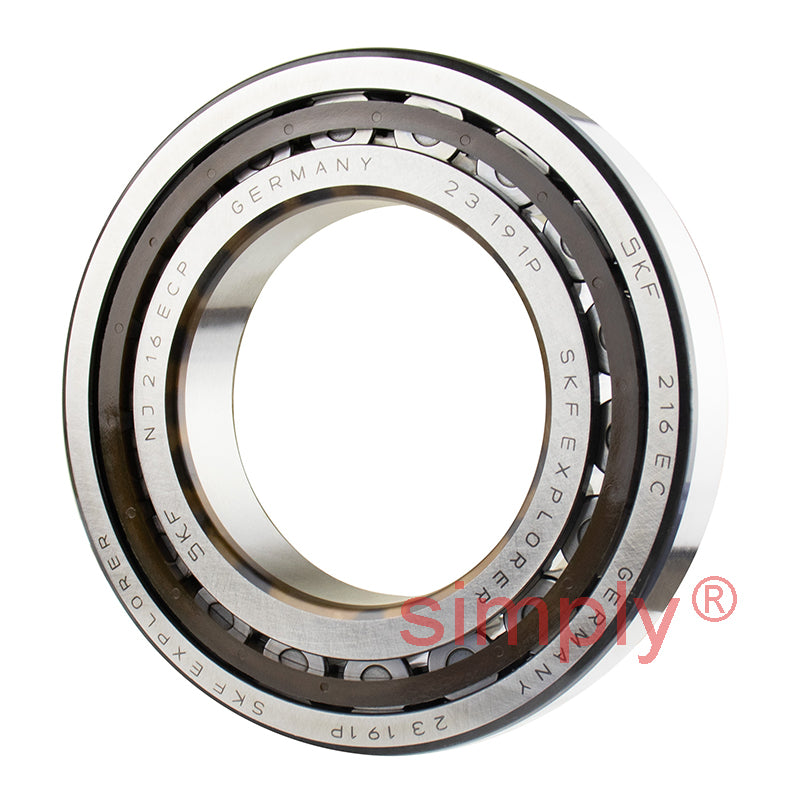

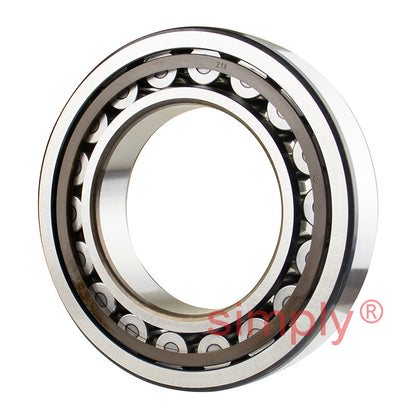

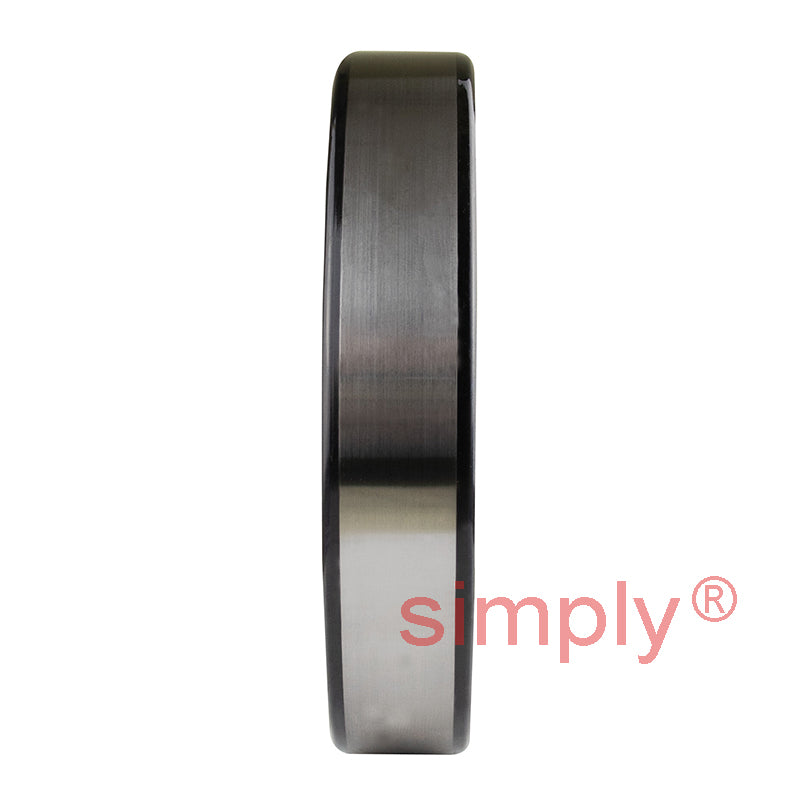

SKF NJ216ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 80x140x26mm
SKF NJ216ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 80x140x26mm
Regular price
$165.04
ex VAT
Regular price
Sale price
$165.04
ex VAT
In stock
Price Break
10+
$110.55
19+
$104.34
29+
$103.10
39+
$101.85
49+
$100.61
74+
$99.37
99+
$93.16
199+
$91.92
249+
$90.68
499+
$89.43
999+
$86.95
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 160 kN |
| Static load Co | 166 kN |
| Fatigue load limit Pu | 21.2 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.6 kg |
| Alt cage | J.M.ML |
| d1 | 101mm |
| D1 | 123mm |
| F,E | 95.3mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 1.4mm |
| da min | 91mm |
| da max | 93mm |
| db | 104mm |
| Da max | 129mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ216EC |
| Angle Ring Weight | 0.21 kg |
| B1 | 8mm |
| B2 | 12.5mm |
