SKU: NJ2206-CDX

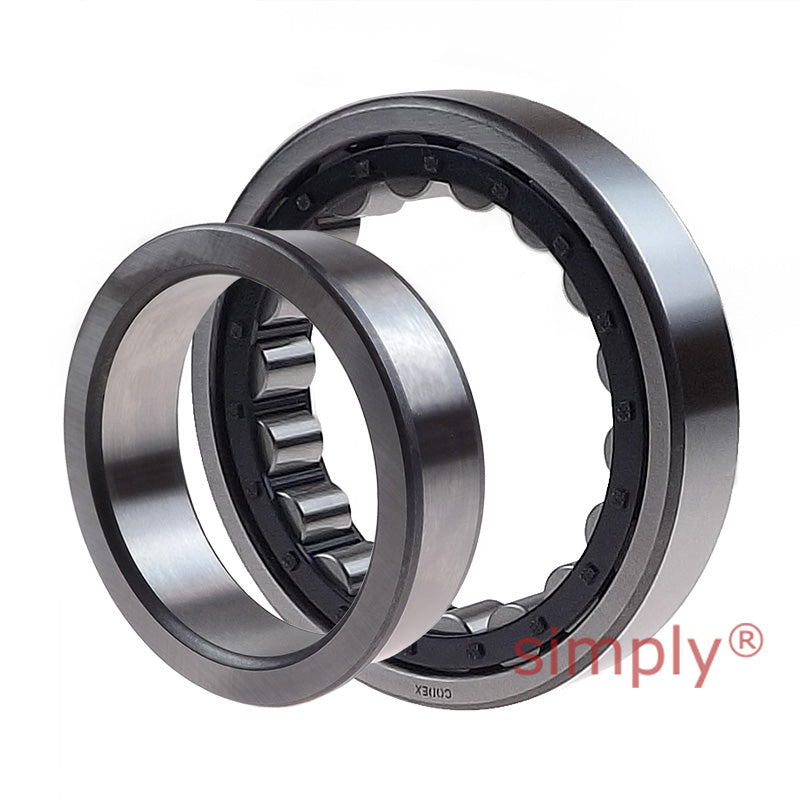

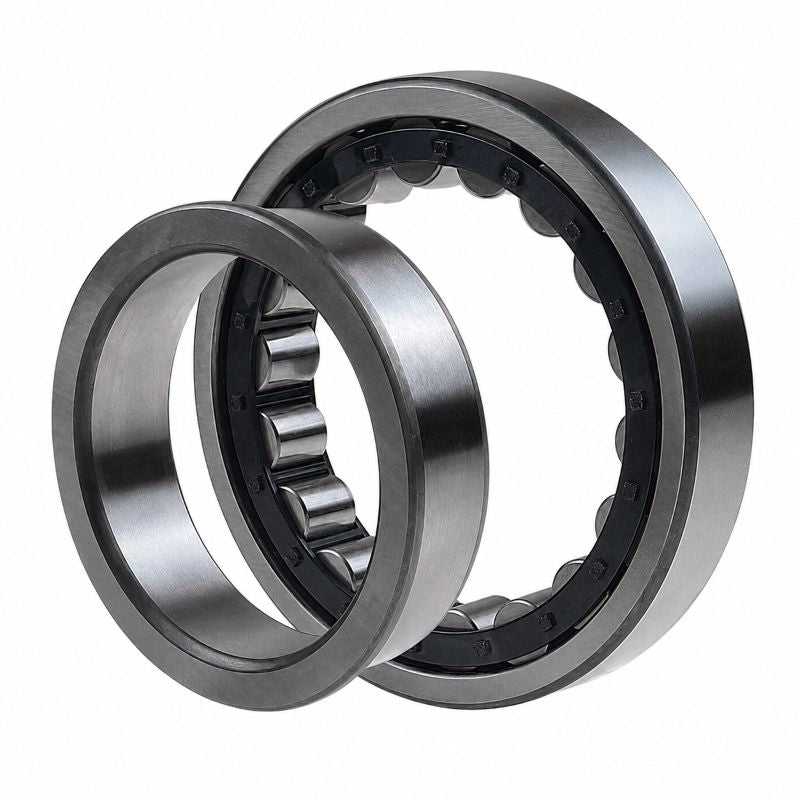

Codex NJ2206 Single Row Cylindrical Roller Bearing 30x62x20mm

Name: Codex NJ2206 Single Row Cylindrical Roller Bearing 30x62x20mm
Brand: Codex
SKU: NJ2206-CDX
Price: 41.47 USD
Availability: InStock

$41.47 ex VAT

Sale Sold out

In stock

Price Break

10+ $27.78

19+ $26.22

29+ $25.91

39+ $25.60

49+ $25.28

74+ $24.97

99+ $23.41

199+ $23.10

249+ $22.79

499+ $22.47

999+ $21.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 30mm
Outside Diameter:: 62mm
Width:: 20mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	30mm
D	62mm
B	20mm
Dynamic load C	55 kN
Static load Co	49 kN
Fatigue load limit Pu	6.1 kN
Reference speed	13000 rpm
Limiting speed	14000 rpm
Weight	0.26 kg
Cage options	J.ML
d1	41.2mm
D1	52.5mm
F, E	37.5mm
r1r2 min	1mm
r3r4 min	0.6mm
s	1.8mm
da min	34mm
da max	36mm
db min	43mm
Da max	57mm
ra max	1mm
rb max	0.6mm
kr	0.2
